Brand Name : TUF

Model Number : Module TUF-2000M

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs / month

Delivery Time : 0~5 working days stock

Packaging Details : Standard export package

Pipe size : DN25~DN6000mm

Temperature : -30~160℃

Accuracy : ±1%

Ultrasonic Flow meter : Converter + transducer

Contact Now

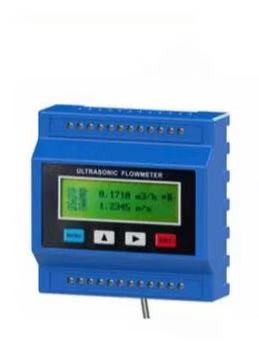

Module TUF-2000M Wall Mounted Ultrasonic Flow Meter For Liquid Flow Measurement

TUF-2000 Series Ultrasonic Flow/Heat Meters utilize the transit-time principle to measure the velocity of relatively clean liquids in full pipes.

Ultrasonic Flow meter = Converter + transducer

Ultrasonic Heat meter = Converter + transducer + Temperature transducer

1.3 Module TUF-2000M Types of Flow/Temperature transducers

Flow transducer	Model	Measuring range	Temperature
Clamp on	TS-2 (small) TM-1 (medium) TL-1 (large)	DN25-100 DN50-700 DN300-6000	-30 ~ 90℃
High temp. Clamp on	TS-2-HT (small) : TM-1-HT (medium) TL-1-HT (large)	DN25-100 DN50-700 DN300-6000	-30 ~ 160℃
Insertion	TC-1 (standard) TC-2 (extended) TP-1 (parallel)	DN50-6000 DN80-6000	-30 ~ 160℃
Inline	Standard	DN15-1000	-30 ~160℃

Menu No.	Function
M00	Display flow rate and NET totalizer. If the net totalizer is turned off(refer to M34), the net totalizer value shown on the screen is the value prior to its turn off. Select all totalizer unit in menu M31.
M01	Display flow rate, velocity.
M02	Display flow rate and POS(positive) totalizer. If the positive totalizer is turned off, the positive totalizer value shown on the screen is the value prior to its turn off.
M03	Display flow rate and NEG(negative) totalizer. If the negative totalizer is turned off, the negative totalizer value shown on the screen is the value prior to its turn off.

Module TUF-2000M
