MF5200 Medical Oxygen Flow Meter Detachable Display

Name: MF5200 Medical Oxygen Flow Meter Detachable Display
Brand: YunYi
Price: 255.0 USD

MF5200 Medical Oxygen Flow Meter Detachable Display Manufactures

Brand Name : YunYi

Model Number : MF5200, MF5212, MF5219,MF5212 MF5219 MF5200

Place of Origin : China

MOQ : 1 piece

Price : USD255.0-USD400.0 PER PIECE

Payment Terms : T/T, Western Union

Supply Ability : 1000 Unit/Units per Month

Delivery Time : 10DAYS

Warranty : 1 year

Customized support : OEM

Type : Variable Area Air & Gas Flowmeters

Pipe size : Pipe size

Flowrate : 200L/M, 300L/M, 600L/M, 800L/M

Accuracy : 1%FS

Max pressure : 1.0MPa

Work temperature : -10~65C

Power supply : 8-24VDC

Output : RS485

Connection : DN12 tri-clamp, DN19 tri-clamp

Contact Now

Description of MF5200 medical sensor Detachable Display Oxygen Flow Meters

MF5200 series oxygen flow meters are specially designed for oxygen metering system in a hospital.These meters are operated with the standard industrial user interfaces(RS485),and user defined alarm functions forbettermonitoringorcontroloverthenetwork.Theoff-the-shelfproducts(MF5212andMF5219)are forgas flow measurementof0-300SLPMand0-800SLPM,respectively.

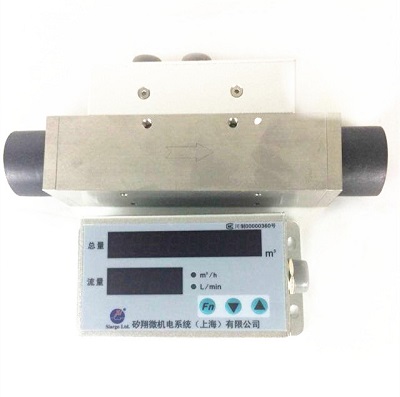

Detailed Images of MF5200 medical sensor Detachable Display Oxygen Flow Meters

Specification of MF5200 medical sensor Detachable Display Oxygen Flow Meters

Parameters	MF5212	MF5219
DN size	12mm	19mm
Max flowrate	200, 300L/M	600L/M, 800L/M
Min flowrate	0.3L/M	0.8L/M
Turn Down Ratio	30:1	30:1
Accuracy	±2.0%FS	±2.0%FS
Max pressure	1.0MPa	1.0MPa
Operation temp	-10~65C	-10~65C
Power supply	8~24VDC	8~24VDC
OUtput	RS485	RS485
Connection	DN12 tri-clamp	DN19 tri-clamp
Medium	air, gas, oxygen	air, gas, oxygen
Protection	IP40	IP40
Repeatability	±1.0%	±1.0%

Parts description of MF5200 medical sensor Detachable Display Oxygen Flow Meters

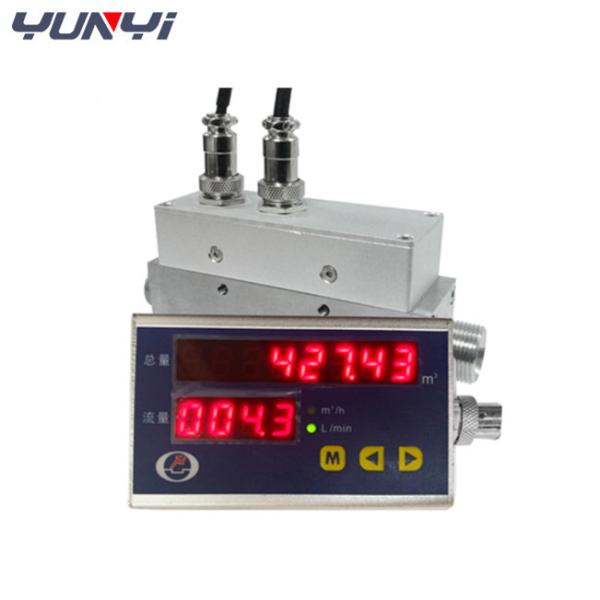

MF5200 Medical Oxygen Flow Meter Detachable Display

Dimension of MF5200 medical sensor Detachable Display Oxygen Flow Meters

Product selection of MF5200 medical sensor Detachable Display Oxygen Flow Meters

Feature of MF5200 medical sensor Detachable Display Oxygen Flow Meters

1. Integrated MEMs mass flow sensors and pressure sensors
2. Detachable display that can be placed away from the flow channel via a specially designed cable
3. LED display for both instant flow rate and flow accumulation
4. Standard Rs485 for remote data communication
5. Hygienic stainless steel body ready for oxygen metering
