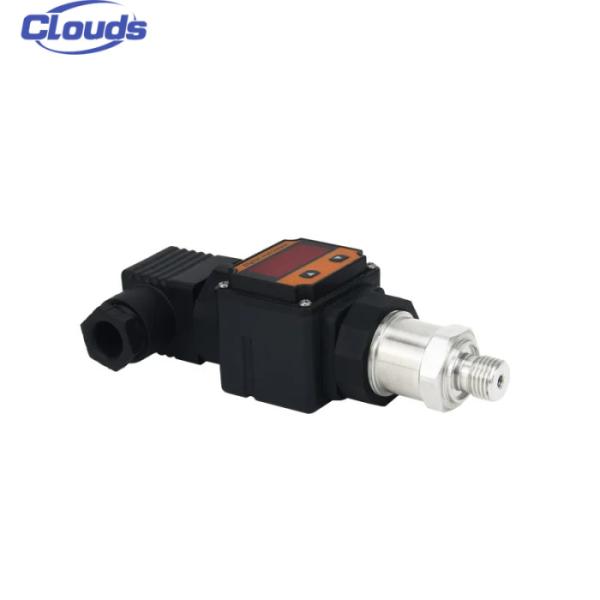

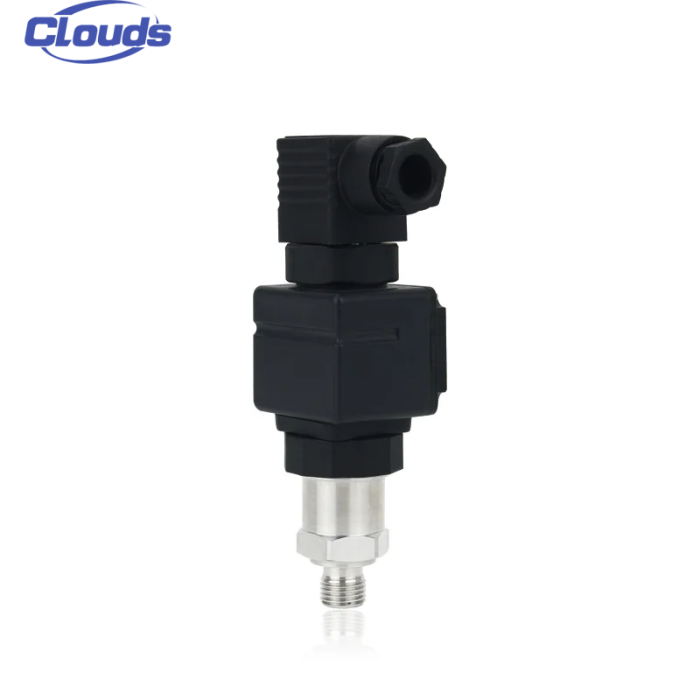

YD33 Digital Industrial Pressure Transmitter Smart Water Pressure Sensor

  • 1
  • 2

Brand Name : Clouds

Model Number : YD33

Certification : CE, ISO

Place of Origin : China

MOQ : 1pc

Price : USD35.00/PC-USD55.00/PC

Payment Terms : T/T, Western Union, MoneyGram, D/P

Supply Ability : 10000PCS per month

Delivery Time : 5-7days

Packaging Details : Standard export carton box

Other Response Time : 50 msec

Material : Stainless Steel

Housing Protection : IP65

Application : oil, gas, air, water etc

Storage Temperature : -40 ~ 100 ℃

Sensor Type : Ceramic pressure sensor

Product Package : Plastic Box

Contact Now

Description:

The YD33 digital smart industrial pressure transmitter, featuring an LED/LCD display, incorporates a high-quality imported piezoresistive pressure sensor. This transmitter offers local value reading for ease of use. Its fully welded 316L stainless steel housing ensures superior resistance to shock and vibration, along with EMI/RFI protection. Thanks to these features, the YD33 is resilient enough to withstand even the harshest operational conditions.

Specification:

Parameter YD33
Pressure Range Gauge / Absolute pressure optional.
Overload 200% F.S.
Burst Pressure 500% F.S.
Accuracy ≤ ±0.5%F.S typical<br>≤ ±0.25%F.S optional<br>≤ ±0.1%F.S (by customized) at 25℃<br>Including non-lin., rep. and hys.
Long-term Stability 0.1%F.S/Year
Working Temp. -20℃~80℃ (corrosive medium);<br>-40℃~80℃ (non-corrosive medium)
Compensation Temp. 0℃....50℃ (P≤35KPa) or -10℃...80℃ (P>35KPa)
Storage Temp. -40℃~125℃ (Nitrile rubber sealing ring);<br>-30℃~150℃ (fluororubber rubber sealing ring)
Medium Compatible Compatible with 316L Stainless Steel
Electrical Wire 2 Wires / 3 Wires
Output 4-20mA, 0-5V, 1-5V
Power Supply N/A (Not Specified)
Insulate resistance N/A (Not Specified)
Zero Temp. Drift N/A (Not Specified)
FS Temp. Drift 0.03%FS/℃ (≤35kPa), 0.02%FS/℃ (>35kPa)
Local display LED indicator
Specification 4 -1/2 bits LED/LCD local display<br>Non-linear: ±0.02%F.S.;<br>Display scope: -9999 to +9999
Sampling rate 10 times / sec.;<br>Working temp range: -30 to +80℃
Overload display ‘ERR’
Backlight Suitable for dark environment application.
Electrical connection DIN Hirschmann Terminal Box 4 Pins and IP65.
Mechanical vibration ±20g
Pressure connect port 1/4’‘NPT male, 1/2’‘NPT Female;<br>G1/2’’; G1/4’’male optional. (By customized)
IP rating IP65
Response time ≤10ms

Features:

  • With 4-1/2 bits LED display
  • 2 times range standard overload
  • 5 times range burst pressure
  • Fully Welded Stainless Steel Housing
  • Surge(lightning) protection
  • EMI/RFI Protection
  • Zero point and span adjustable
  • CE, RoHS certifificate approvedYD33 Digital Industrial Pressure Transmitter Smart Water Pressure Sensor
