Description 4-20mA Thread Flange High Precision Turbine Flowmeter Liquid Turbine Flowmeter
Turbine flowmeter (hereinafter referred to as TUF) is the main variety of impeller type flow meter, impeller type flowmeter, anemometer, water meter, etc.The TUF consists of a sensor and a conversion display instrument. The sensor USES a multi-blade rotor to feel the average flow velocity of the fluid, thereby deriving the flow or total volume.The rotor speed (or number of turns) can be detected by mechanical, magnetic induction, photoelectric method and recorded by the readout device

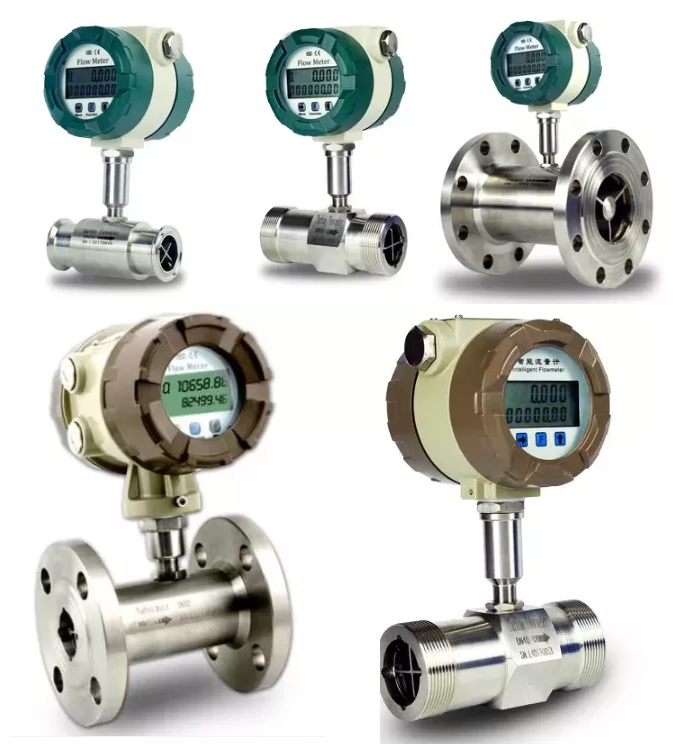

Detailed Images 4-20mA Thread Flange High Precision Turbine Flowmeter Liquid Turbine Flowmeter
Specification 4-20mA Thread Flange High Precision Turbine Flowmeter Liquid Turbine Flowmeter
| Model | LWGY-N | LWGY-A | LWGY-N Explosion type | LWGY-A Explosion type | LWGY-B | LWGY- C |
| Signal output | pulse | 4-20mA | pulse | 4-20mA | without | 4-20mA/pulse |
| Power supply | +24VDC±1 5% | +24VDC±15% | 24VDC±15% | 24VDC±15% | lithium battery | 24VDC±15% |
| Accuracy | 1.0~0.5 | 1.0~0.5 | 1.0~0.5 |
| Measuring range | Standard | Standard | Standard or extended |
| Monitor | without | without | within |
| Communication Interface | without | without | RS485 |
| Material | stainless steel | stainless steel | stainless steel |
| Explosion | without | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 |
| Protection class | IP60 | IP65 | IP65 |
| Power consumption | <1W | <1W | <1W |
| Instrument pass through | DN4~DN250 | DN4~DN250 | DN4~DN250 |
| Medium temperature | -20℃~120℃ | -20℃~120℃ | -20℃~120℃ |
| Ambient temperature | -30℃~60℃ | -30℃~60℃ | -30℃~60℃ |
| Instrument Path | Standard range (m3/h) | Extended range (m3/h) | Installation method | Conventional pressure (MPa) | Special pressure rating (MPa) |
| DN 4 | 0.04~0.25 | 0.04~0.4 | Thread (flange) | 6.3 | 12,16,25 |
| DN 6 | 0.1~0.6 | 0.06~0.6 | Thread (flange) | 6.3 | 12,16,25 |
| DN 10 | 0.2~1.2 | 0.15~1.5 | Thread (flange) | 6.3 | 12,16,25 |
| DN 15 | 0.6~6 | 0.4~8 | Thread (flange) | 6.3,2.5(Flange | 4.0,6.3,12,16,25 |
| DN 20 | 0.8~8 | 0.45~9 | Thread (flange) | 6.3,2.5(Flange | 4.0,6.3,12,16,25 |
| DN 25 | 1~10 | 0.5~10 | Thread (flange) | 6.3,2.5(Flange | 4.0,6.3,12,16,25 |
| DN 32 | 1.5~15 | 0.8~15 | Flange (thread) | 6.3,2.5(Flange | 4.0,6.3,12,16,25 |
| DN 40 | 2~20 | 1~20 | Flange (thread) | 6.3,2.5(Flange | 4.0,6.3,12,16,25 |
| DN 50 | 4~40 | 2~40 | Flange (thread) | 2.5 | 4.0,6.3,12,16,25 |
| DN 65 | 7~70 | 4~70 | Flange | 2.5 | 4.0,6.3,12,16,25 |
| DN 80 | 10~100 | 5~100 | Flange | 2.5 | 4.0,6.3,12,16,25 |
| DN 100 | 20~200 | 10~200 | Flange | 1.6 | 4.0,6.3,12,16,25 |
| DN 125 | 25~250 | 13~250 | Flange | 1.6 | 2.5,4.0,6.3,12,16 |
| DN 150 | 30~300 | 15~300 | Flange | 1.6 | 2.5,4.0,6.3,12,16 |
| DN 200 | 80~800 | 40~800 | Flange | 1.6 | 2.5,4.0,6.3,12,16 |
Features 4-20mA Thread Flange High Precision Turbine Flowmeter Liquid Turbine Flowmeter
Good accuracy, usually can reach to ±1%R,±0.5%R, high accuracy can reach to ±0.2%R;
Good repeatability, short-term repeatability can reach to 0.05%~0.2%;
Output pulse frequency signal, it is suitable for metering and connected to the computer, no zero drift, strong anti-jamming capability;
Can get very high frequency signal(3~4kHz),Strong signal definition;
Large rangeability, large and middle size can reach to 1:20,small size is 1:10;
Simple structure,convenient installation/maintenance, flow capacity;
For high pressure measurement, idon't have to open hole on instrument, easy to made into high pressure type instrument.
Application 4-20mA Thread Flange High Precision Turbine Flowmeter Liquid Turbine Flowmeter
In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.
Selection Guide 4-20mA Thread Flange High Precision Turbine Flowmeter Liquid Turbine Flowmeter
Turbine flowmeter category
(1) plug-in turbine flow meter
(2) gas turbine flow meter
(3) Intelligent turbine flow meter
(4) liquid turbine flowmeter
(5) clamp-type liquid turbine flow meter
(6) anti-corrosion turbine flowmeter
(7) high-pressure turbine flowmeter
