Quality High Generator Oil Liquid For Air Compressor Pressure Sensor
Description P10uality High Generator Oil Liquid For Air Compressor Pressure Sensor
P110 series pressure transmitters are small in size, compact in structure and stable in performance. They are designed and processed in combination with rich experience in the field of industrial automation.The internal circuit has excellent anti-interference performance, and the stainless steel structure ensures that it is durable and can be used in various environments and climates.

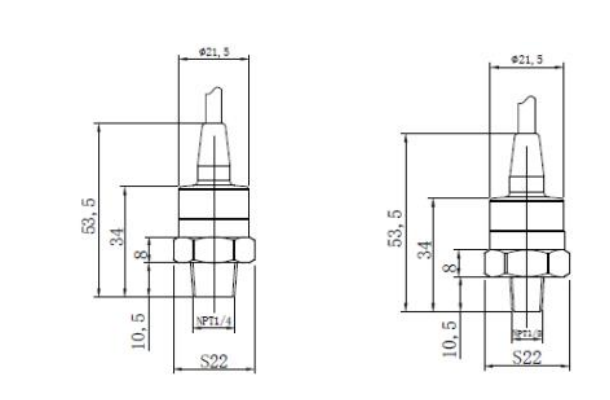

Detailed Images P10uality High Generator Oil Liquid For Air Compressor Pressure Sensor
Specification P10uality High Generator Oil Liquid For Air Compressor Pressure Sensor
| Power supply | 5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal output 0...10V, 9...32V with signal output 4...20mA |
| Response time (10 ... 90 %) | ≤2ms |
| Accuracy | 1 % F.S 0.5% F.S , 0.25FS |
| Permissible temperature of |
| Compensated temperature range | -40...125℃ |
| Mean TC of zero | typical:0.03%F.S/℃； maximal:0.05%F.S/℃ |
| Mean TC of range | typical:0.03%F.S/℃； maximal:0.1%F.S/℃ |
| CE - conformity |
| Test Standard | EN 55022:2010/AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 |
| EMC directive | 2014/30/EU |
| Shock resistance | 1000g according to IEC 60068-2-27 (mechanical shock) |
| Vibration resistance | 20g according to IEC 60068-2-6 (vibration under resonance) |
| Wiring protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 38g |
| Connection | G1/4 |
Features P10uality High Generator Oil Liquid For Air Compressor Pressure Sensor
1.Economy
2.0.5-4.5V, 4-20mA, 0-10V, IIC standard signal output
3. Compact size
4.Good stability
5. High overload
6. Temperature range: -40…125℃
7. Low power wireless application
8. The output signal is diversified and can be customized according to requirements
Applications P10uality High Generator Oil Liquid For Air Compressor Pressure Sensor
1.Constant pressure water supply, building water supply
2.Construction machinery, industrial process control and monitoring
3. Water pumps, small appliances
4. Steel, light industry, environmental protection
5.Medical, agricultural machinery, testing equipment supporting
6.Supporting flow metering equipment
7.Hydraulic and pneumatic control system
8. Air-conditioning units and refrigeration equipment
