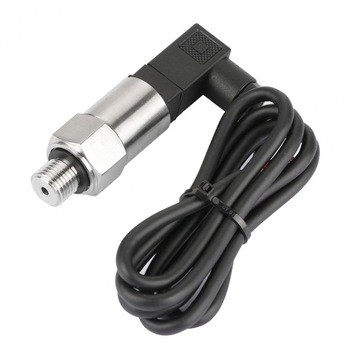

5V 4mA Electronic Vacuum Pressure Transmitter For Air Fuel Oil Water

Name: 5V 4mA Electronic Vacuum Pressure Transmitter For Air Fuel Oil Water
Brand: Yunyi
Price: 24.8 USD

5V 4mA Electronic Vacuum Pressure Transmitter For Air Fuel Oil Water Manufactures

Brand Name : Yunyi

Model Number : YD31S

Certification : ISO CE

Place of Origin : China

MOQ : 1

Price : USD$24.8-USD$35.2/Unit

Payment Terms : T/T, Western Union

Supply Ability : 1000 unit/month

Delivery Time : 5-10 working days

Packaging Details : Standard export package

Pressure range : 0-0.1bar to 0-1000bar

Stability : ≤ 0.05 % F.S

Power supply : 24VDC (12~36VDC)

Thread : G1/4, G1/2 1/4NPT, 1/2NPT and others

Output : 4-20mA, 0-20mA, 0-5V,0-10V and others

Case material : stainless steel

Warranty : 365 days

Contact Now

Product Description

Description of Analog air fuel oil water vacuum pressure transmitter 4-20mA 0-10V 0-5V

Low cost 4-20mA 0-10V 0-5V analog air fuel oil water vacuum pressure transmitter adopt strain resistance principle, use silicon-sapphire as a semiconductor sensitive element, with unparalleled features. Sapphire pressure transmitter is made of single crystal insulator elements, will not appear lag, fatigue and creep; sapphire type is stronger than diffuse silicon type, with better hardness and no deformation; sapphire pressure transducer with very good flexibility and insulation characteristics (within 1000 OC), and not sensitive to temperature changes.

Detailed Images

Specification

Item	Low cost 4-20mA 0-10V 0-5V analog air fuel oil water vacuum pressure transmitter
Pressure range	0.3...1000bar
Materials	316L stainless steel(DIN1.4435)
Electrical connection	DIN43650
Signal output	4-20mA, 0-10V and others
Power supply	12-36VDC
Electric Interface	L plug interface, Circular plug interface, Wire output, With cable
Temperature	-40ºC...85ºC
Accuracy	<=0.25{0.125}(BFSL)<=0.5{0.25}
Temperature compensation	-10ºC...80ºC
Medium temp	-30-100°C
Wetted part material	stainless steel
Connection	G1/4, G1/2 1/4NPT, 1/2NPT and others
Shock resistance	1000g according to IEC 60068-2-27 (mechanical shock)
Vibration resistance	20g according to IEC 60068-2-6 (vibration under resonance)

Features
High accuracy and stability
Can apply for temperature of -40ºC~100ºC
High corrosion resistance
A variety optional of pressure interface
Large pressure range to for optional

Application

Engineering machinery,Car
Oil and Chemical industry
Automatic checkout systen
Shipping,Railway transportation
Wind power generation
Supply heating,Medicine
Hydraulic pressure,Air compressor and Pump
