Description LED single-loop pressure level controller temperature controller
Using advanced microprocessor for intelligent control, it is suitable for the display and control of various physical quantity detection signals such as temperature, humidity, pressure, liquid level, instantaneous flow, speed, etc., and can perform high-precision linearity on various nonlinear input signals. Correction measurement.
Using the latest jumper-free technology, the input port has single-channel and universal signal input functions, and a variety of input signals (various thermocouples, thermal resistance, standard voltage/standard current can be realized by simply selecting the instrument menu) signal), increasing the versatility and reliability of the instrument.
High-brightness LED digital display and high-resolution light bar display (proportional display) make the measurement/control value display clearer and more intuitive.
The input and output circuits are all optically isolated, with strong anti-interference ability. With serial communication interface, it can carry out two-way communication with various devices with serial interface to form a network control system.
With a variety of standard external dimensions, it can be applied to various measurement and control occasions. The whole machine adopts a snap-in structure, which makes the installation very easy
Detailed Images LED single-loop pressure level controller temperature controller
Specification LED single-loop pressure level controller temperature controller
Input signal analog :
Resistance - - standard thermal resistance - -Pt100 Cu50 and other remote pressure resistance
Resistors - - standard thermocouple - -B, S, K, E, J, T, WRe and other Current - -0 ~ 10mA, 4 to 20mA, 0 to 20mA, etc. - - Input resistance
Resistance ≤ 250Ω
Voltage - -0 ~ 5V, 1 ~ 5V, etc. - - Input impedance ≥ 250Ω Measuring range:-1999~9999 words
Measurement accuracy:0.2%FS±1 word or 0.5% FS±1 word Resolution temperature :1, 0.1, 0.01, or 0.001 words Compensation :0~50
Display·
-1999~9999 measured value display · -1999~9999 set value display
·0~100% measured light bar display · LED working status display Light column accuracy : 1%
Control mode :Bit ON/OFF With return difference Output signal
Analog output
DC0 ~ 10mA (load capacity ≤ 750Ω) DC4 ~ 20mA (load capacity ≤ 500Ω) DC0 ~ 5V (load capacity ≤ 250Ω) DC1 ~ 5V (load capacity ≤ 250Ω) Digital Output
Relay Control Output - - Relay ON/OFF With return difference Contact capacity: AC220V/3A; DC24V/6A (resistive load)
Thyristor control output - - SCR (thyristor zero-crossing trigger pulse) Output, thyristor can be triggered: 400V/100A
Solid State Relay Output - - SSR (Solid State Relay Control Signal) Output, 6 to
24/30mA (voltage not adjustable)
Communication Output
Interface Mode - - Standard Serial Bidirectional Communication Interface: RS-485,RS-232C, RS-422, etc.
Po Rate - -300 to 9600bps Internal free setting Feed output:DC24V, load capacity ≤30mA
control method:Select 1 to 4 limit control, LED indication. The control mode is relay ON/OFF with hysteresis (user can set freely)
Control precision:±1 word
Alarm mode Select 1~4 limit alarm, LED indication. The control mode is relay ON/OFF with hysteresis (user can set freely)
Alarm accuracy: ±1 word
Temperature compensation: 0~50°C Digital temperature automatic compensation Parameter setting
·Panel touch button digital setting · Parameter setting value is kept permanently ·Parameter setting password lock
Protection method:
·Input circuit break alarm (when thermocouple or resistance input), relay output, LED indication
·Input over/under range alarm · Power undervoltage reset automatically
·Work Abnormal Automatic Reset (Watch dog)
Online communication The communication protocol is two-wire, three-wire or four-wire (such as RS-485, RS-232C,
| Item | Details |

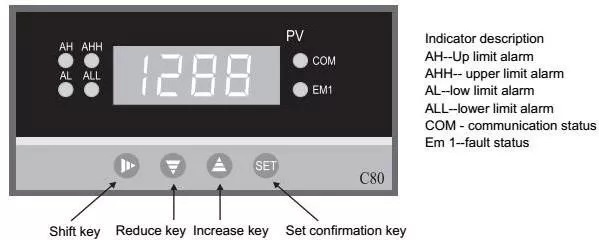

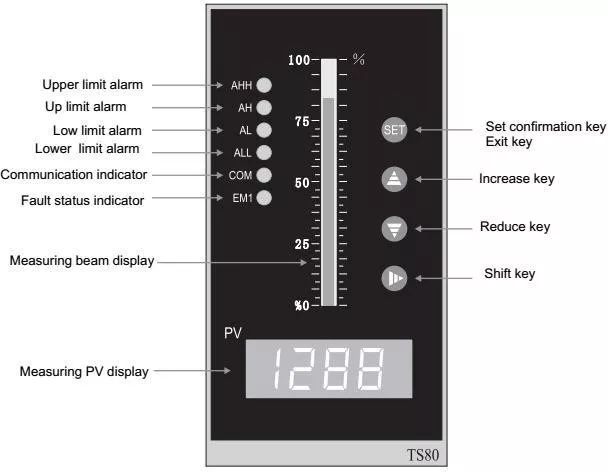

| Indicator light | AH1 Indicator light( Red) | Lights up when the first upper limit alarm is ON |
| | AL1 Indicator light( Green) | Lights up when the first upper limit alarm is ON |
| | AH2 Indicator light( Red) | Lights up when the second lower limit alarm is ON |
| | AL1 Indicator light( Green) | Lights up when the second lower limit alarm is ON |
Features LED single-loop pressure level controller temperature controller
The new concept of computer digital automatic adjustment
·Measurement value zero point migration function ·Gain value amplification function
·Cold junction compensation value zero migration function · Cold junction compensation value gain amplification function
·Transmitting output value zero shift function · Transmitting output value gain amplification function
Clear and clear measurement display
·High-definition LED quantity display measurement value ·High-brightness light column measurement value display
Support multi-machine network communication, communication protocol can be freely set Unique full open user self setting interface
·Input signal type setting · Zero point and range setting of measured value
·Alarm mode setting · Output mode setting
Set parameters for permanent power off and parameter password lock Full digital cold junction compensation
·Optional internal cold junction compensation
. Optional external cold junction compensation (suitable for high-precision measurement occasions)
·Multi-size outline structure size · AC and DC switching power supply

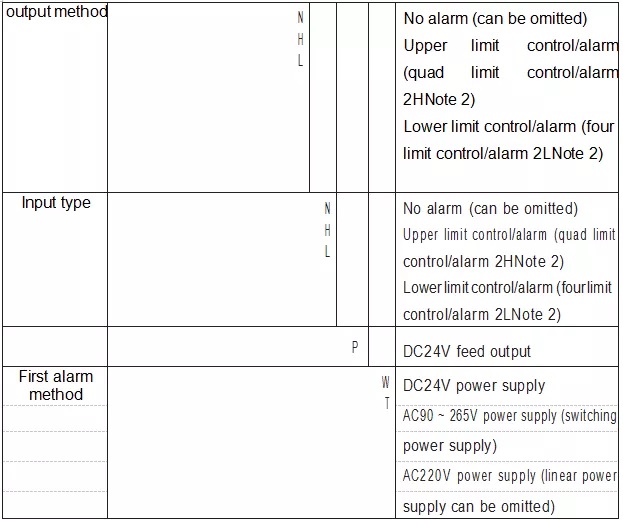

Selection Guide LED single-loop pressure level controller temperature controller
