smart digital PNP relay pressure sensor controller differential pressure switch sensor price
Description
smart digital differential pressure switch sensor is a pressure measurement, display, intelligent digital pressure measurement and control products output, integrated control. This product is a full electronic structure, use front-end with baffle filled hydraulic resistance type pressure sensor, the output signal is composed of high precision, low drift amplifier processing, into the high precision A/D converter, the digital signals into the microprocessor can processing, through processing the signal control switch, monitoring and control of the pressure control system. Digital Air Pressure Switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.

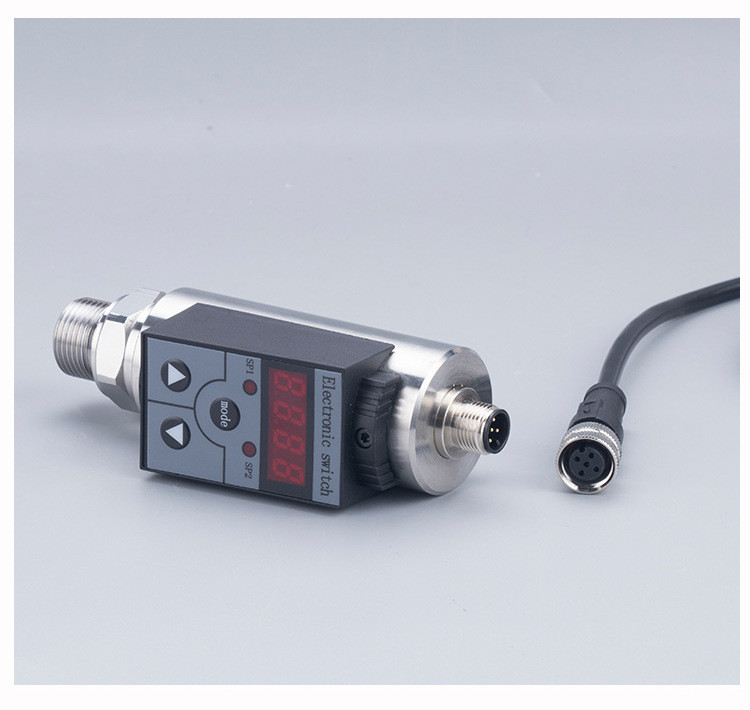

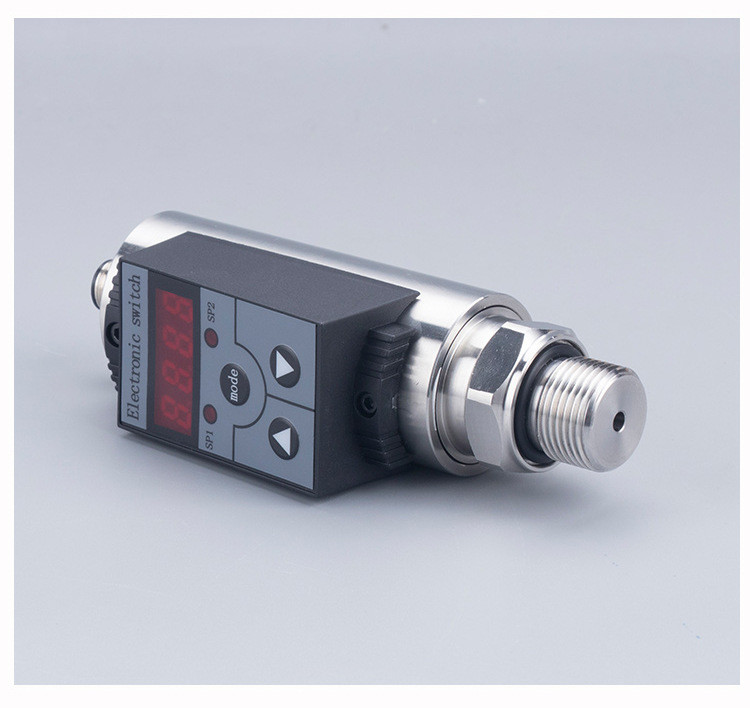

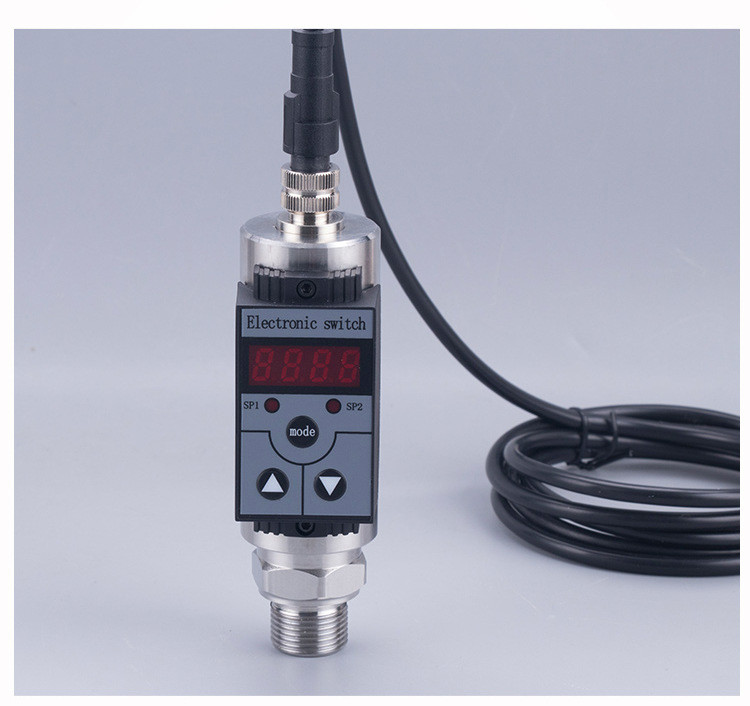

Detail image
Specification
Control range:-0.1~0~100Mpa
Stability:≤ 0.2% / year
Display:4-digit LED display
Power supply range:24V ± 20%
Load capacity:<24V1.2A
Protection class:IP65
Ambient temperature:-30 ℃ ~ 70 ℃
Storage temperature:-40 ℃ ~ 85 ℃
Control accuracy:≤ ± 0.5% FS
Display accuracy:0 to 80%
The display range:-1999 to 9999
Maximum power consumption <3W
Relative humidity:± 0.1% FS
Feature
1.4-digit display of the current pressure value.
2.Pressure preset switch point and delay switching output
3.The switch quantity can be arbitrarily set from zero to full scale
4.The shell is equipped with node action light-emitting diode, easy to observe
5.button adjustment and on-site settings of various parameters, easy to operate.
6.2-way switch output, with a load capacity of 1.2A
7.Analog output (4 ~ 20mA) |
Application
Digital Air Pressure Switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.
Selection
1. what's measurement range do you need?
2. what's thread connection type do you need?
3. what's electrical connection type do you need?
4. Do you need the sensor is with NPN or PNP?
