4-20mA Gas Hydraulic Oil Pressure Sensor Explosion Proof

Name: 420mA Gas Hydraulic Oil Pressure Sensor Explosion Proof
Brand: Yunyi
Price: 25 USD

4-20mA Gas Hydraulic Oil Pressure Sensor Explosion Proof Manufactures

Brand Name : Yunyi

Model Number : YD31a

Certification : CE

Place of Origin : China

MOQ : 1

Price : 25-38usd

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000/month

Delivery Time : 5-7 days

Packaging Details : carton

Item : 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor

Pressure range : -0.1~100MPa

Thread : M20*1.5, 1/4NPT, 1/2NPT, G1/4, G1/8

Output : 0.5~4.5, 1~5v, 4-20mA, 0-10V, 0-5V

Power supply : 12~36VDC, standard 24VDC

Application : Liquid, oil, air, gas, water

Case material : SS304

Accuracy : 0.5%, 0.25%

Overload : 200%FS

Pressure type : Gauge, absolute ,sealed gauge

Work temp : -20℃~80℃

Protection : IP65

Contact Now

4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor

Description of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor

4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor uses a high-performance silicon piezoresistive pressure oil-filled core. The internal dedicated integrated circuit converts the sensor millivolt signal into a standard voltage, current or frequency signal, 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor can be directly connected to the computer interface card, control instrument, and smart instrument. Or PLC, etc. for easy connection. Long-distance transmission can use current output mode. It has a small size, light weight, and all-stainless steel sealed structure, which can work in corrosive environments. 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor is easy to install and simple, with very good vibration and impact resistance.

Parameter of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor

Measuring medium:air or liquid
Material:316L(Diaphragm)
Pressure range:-100kpa'0'100MPA
Out signal:4-20ma ,0-5vdc,0-10vdc,1-5vdc,RS485
Accuracy:0.1%fs,0.25%fs
Enclosure class:IP65
Meadium Tem:-40-85℃
work temperature:-40-85℃
Power supply:9-36VDC

Range	selectable between -0.1-30MPa
Accuracy	0.5% FS, 1.0% FS, 2.0% FS
Output signal	4-20mA, 0 / 1-5 / 10V, 0.5-4.5V
Supply voltage	+ 5VDC, + 12VDC, + 24VDC
Process connection	7 / 16-20UNF, G1 / 4, G1 / 8 (can be customized)
Electrical connection	three-pin plug directly lead
Load capacity	current-≤500Ω
Compensation temperature	0-85 ° C
Operating temperature	-20-125 ° C
Safety overload	150%
Ultimate Overload	200%
Temperature drift	0.02% FS / ° C
Long-term stability	0.2% FS / Year

Feature of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor

Wide measuring range
All stainless steel core and 304 stainless steel housing
Obtained CE certification and explosion-proof certification
Adjustable on site
Can be displayed

Application of 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor

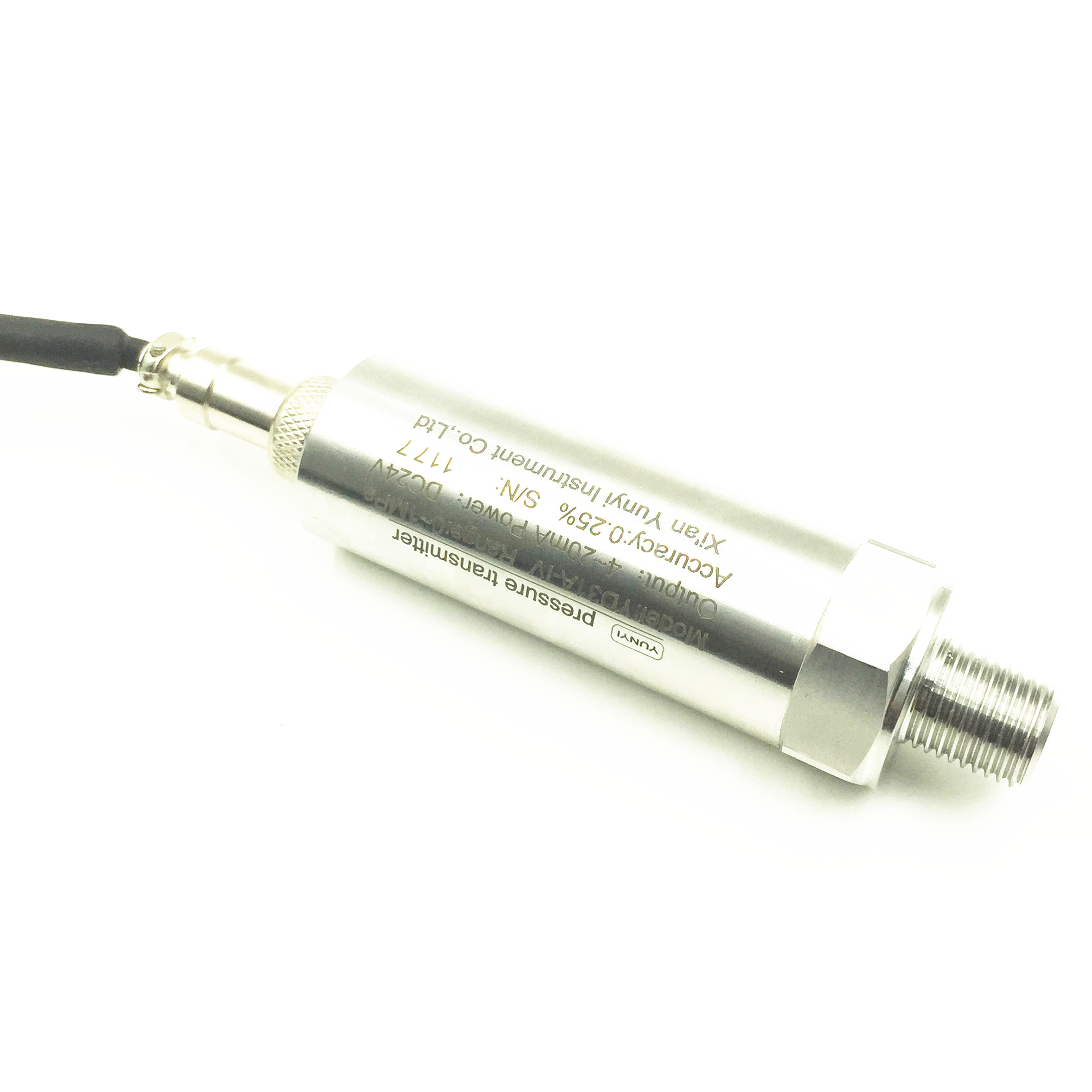

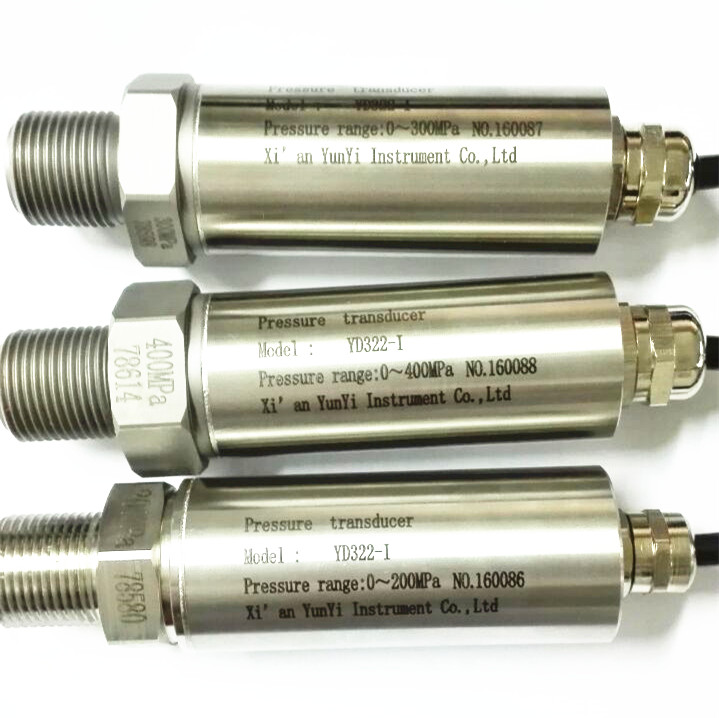

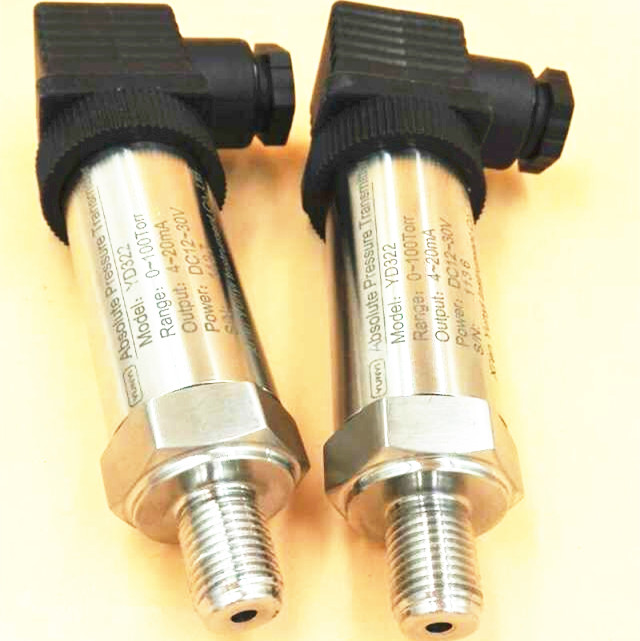

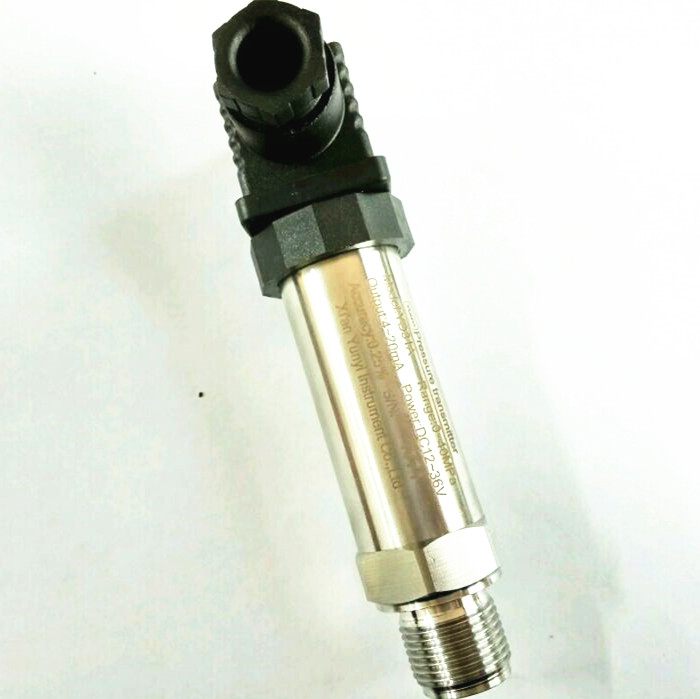

Detailed picture 4-20mA Liquid Generator Oil Hydraulic Oil Steam Gas water oil Pressure Sensor
