MEMS Mass Digital Flow Meter Gas Flow Sensors 0.5MPa

Name: MEMS Mass Digital Flow Meter Gas Flow Sensors 05MPa
Brand: yunyi
Price: 1 USD

MEMS Mass Digital Flow Meter Gas Flow Sensors 0.5MPa Manufactures

Brand Name : yunyi

Model Number : MF4000

Place of Origin : china

MOQ : 1

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1000pcs/moth

Delivery Time : 10days

Meter Technology : MEMS Flow Sensor

Pipe Diameter : 0.12 inch (3 mm)

Max. Pressure : 0.5 MPa

Flowrate Range : MF4003: 0 ~ 2, 3, 4, 5 SLPM

Accuracy : ±(1.5+0.2 FS)%

Contact Now

gas flow sensors MEMS Mass digital Flow Meter

Description gas flow sensors MEMS Mass digital Flow Meter

The MF4000 series mass flow meters are designed for applications of gas flow measurement in a pipe diameter not larger than 8mm. The products can be applied to measure any clean gas from 0-0.5 SLPM up to 0-30SLPM, depending on the product configuration. Customization is also available for high volume applications.

MEMS Mass Digital Flow Meter Gas Flow Sensors 0.5MPa

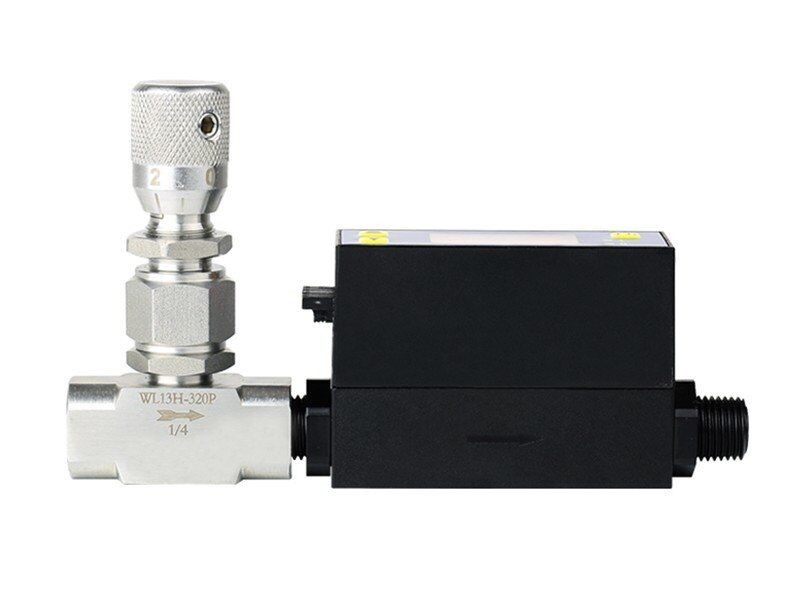

Detail image gas flow sensors MEMS Mass digital Flow Meter

MEMS Mass Digital Flow Meter Gas Flow Sensors 0.5MPa

Specification

Specification Gas Flowmeter Digital Soap Film Electronic Micro Flow Meter

MEMS Mass Digital Flow Meter Gas Flow Sensors 0.5MPa

Products Selection gas flow sensors MEMS Mass digital Flow Meter

MEMS Mass Digital Flow Meter Gas Flow Sensors 0.5MPa

Features

Features gas flow sensors MEMS Mass digital Flow Meter

- Designed for low gas flow in fixed flow channel of 3 mm and 8 mm, with accumulated flow
- Compact design ready for manifold assembly
- Fast response time provides solutions for critical applications
- Excellent for electronic meters in anesthesia equipments
- Exchangeable mechanical connectors for easy installation at different applications
- Intrinsic safe enclosure for wide applications

- Low power consumption, can be operated by battery

Applications gas flow sensors MEMS Mass digital Flow Meter

Environmental Monitoring
1.Aeration cable
2. Gas generated plasma monitor
3. Vacuum applications
4. Preservation of oxygen devices
5. Anesthesia
6. Ventilator
7. Ventilation equipment detection devices
8. Other industrial applications such as welding
