Decription of variable area ultrasonic flowmeter medidor flujo ultrasonido open channel flow sensor dc24v river open channel flow meter
sewage embedded ultrasonic level meter is a kind of high precision level meter by utilizing ultrasound measuring the Venturi channel or Parshall flume.The embedded ultrasonic level meter measure the reflected time of the sound waves when it rech the water interface, and then calculate the channel flow.The embedded ultrasonic level meter can display flow output, flow velocity, total flow and water level.
Specification of variable area ultrasonic flowmeter medidor flujo ultrasonido open channel flow sensor dc24v river open channel flow meter
| Output(optional):4～20mA(standard),0～20mA,1～ 5V, 0～5V,RS485,HART4 relays(Contact capacity AC:5A 250V DC:10A 120V) |
| Consumption:<3W |
| Blind area:＜0.3m-1.5m |
| Accuracy:±0.25%F.S |
| Keyboard:16 key |
| Display:ＬＣＤ |

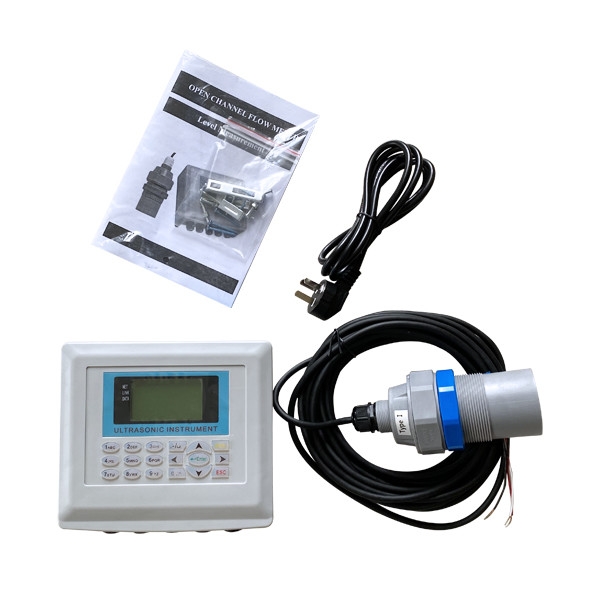

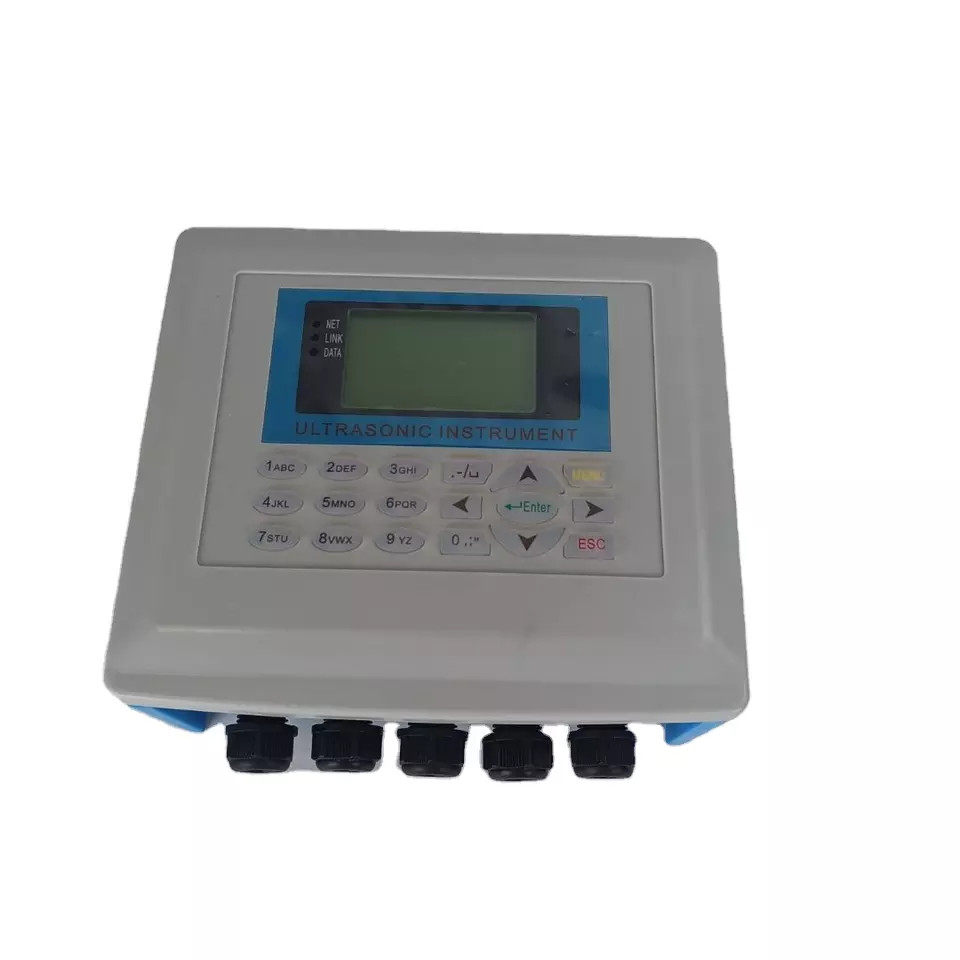

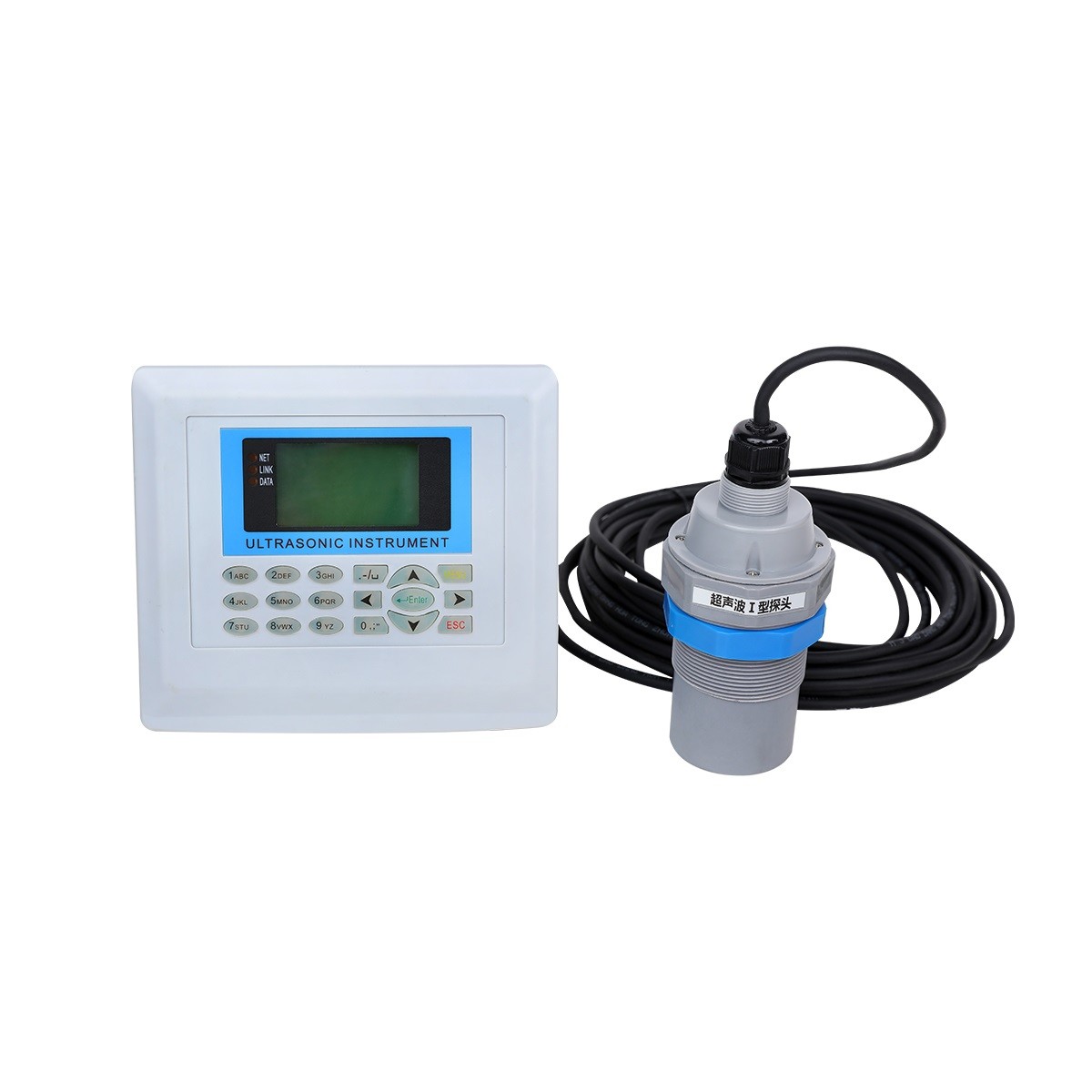

Detail image of variable area ultrasonic flowmeter medidor flujo ultrasonido open channel flow sensor dc24v river open channel flow meter
Features of variable area ultrasonic flowmeter medidor flujo ultrasonido open channel flow sensor dc24v river open channel flow meter
The sensor is non-contact with the measured fluid, avoiding the contamination and corrosion of the sewage in the channel.
Built-in multiple algorithms, suitable for all types standard water weir;
Stable sensors are used for poor operating conditions;
The temperature sensor is built into the transducer to realize real-time automatic temperature compensation.
The blind area can be set manually to block the interference signal near the probe.
4~20MA isolation current output, optional field bus interface;
Control relay output, alarm relay output.
Application of variable area ultrasonic flowmeter medidor flujo ultrasonido open channel flow sensor dc24v river open channel flow meter
Water and sewage treatment,sewage flow in the channel with free flow condition.
Electric power and mine.
The food industry
The company
Rivers, lakes, rivers.
To enter the canal, out of the canal, etc.
Control system.
