300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve With PEEK Seals

Brand Name : Yunyi

Model Number : PG31

Certification : CE

Place of Origin : China

MOQ : 1PCS

Price : 69~76USD/PCS

Payment Terms : T/T, Western Union

Supply Ability : 100pcs per week

Delivery Time : 7 work days

Packaging Details : Carton Packaging

Name : 300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve with PEEK Seals

Medium : steam, hot water, oil, etc.

Fluid temperature : PEEK:-60°℃~300°

Pressure : PG11: 0.0MPa~4.0MPa Normally closed

Connection size : 1/8", 1/4", 3/8"

Thread : G thread, NPT thread

Diameter(mm) : 1.0,1.5,2.0,2.5,3.0,4.0,5.0

Voltage : DC-12V, 24V AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz

Range : ±10%

Coil : YA2H, 15VA(AC), 12W(DC), IP65, 100%ED

Contact Now

300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve with PEEK Seals

Specification

Medium: steam, hot water, oil, etc.
Fluid temperature:PEEK:-60°℃~300°
Pressure: PG11: 0.0MPa~4.0MPa Normally closed
Connection size: 1/8", 1/4", 3/8"
Thread: G thread, NPT thread
Diameter(mm): 1.0,1.5,2.0,2.5,3.0,4.0,5.0
Voltage: DC-12V, 24V AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Range: ±10%
Coil: YA2H, 15VA(AC), 12W(DC), IP65, 100%ED
Material: Body - Brass, Stainless Steel
Seals - PTFE
Magnetic isolation tube - stainless steel 304
Moving iron core - stainless steel 430F
Static iron core - stainless steel 430F
Spring - Stainless Steel 304
Magnetic ring-copper

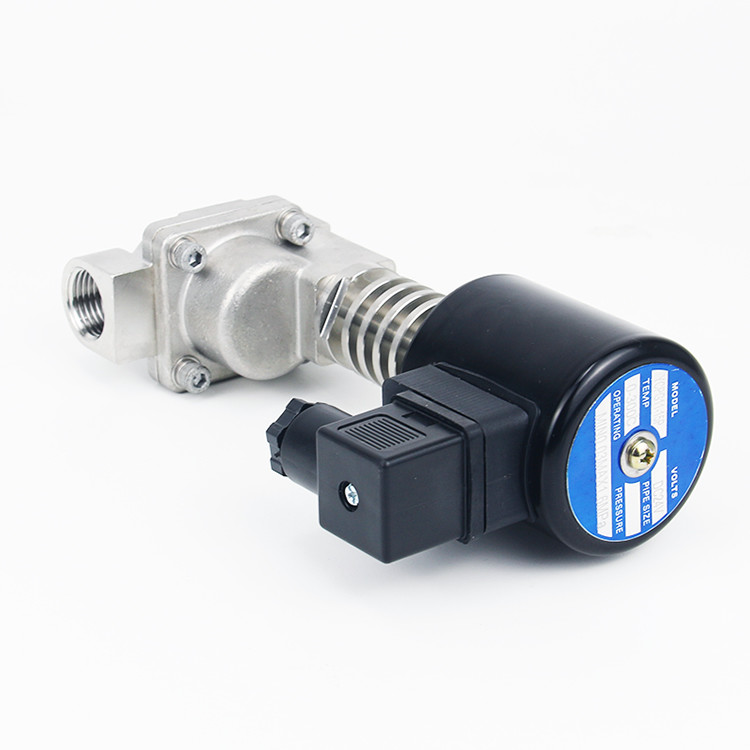

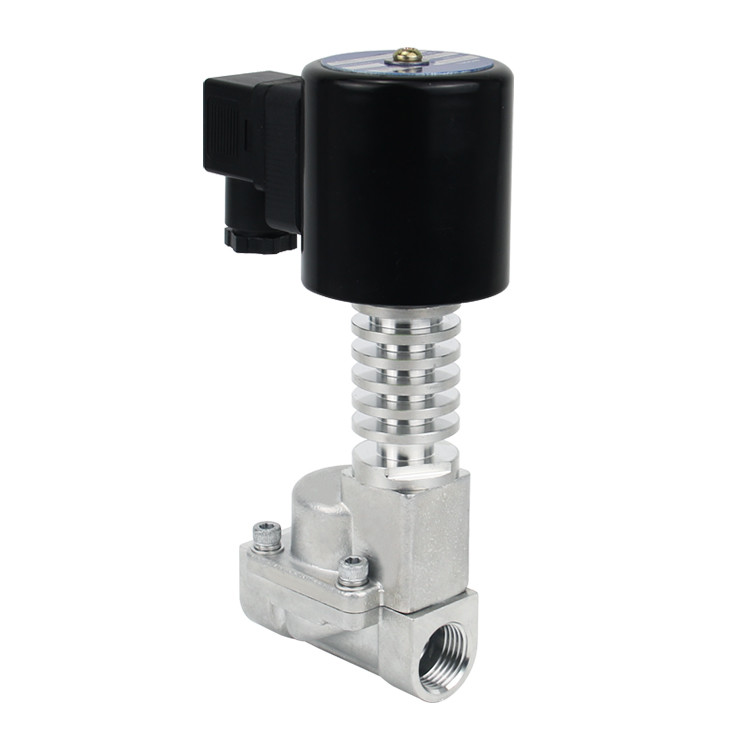

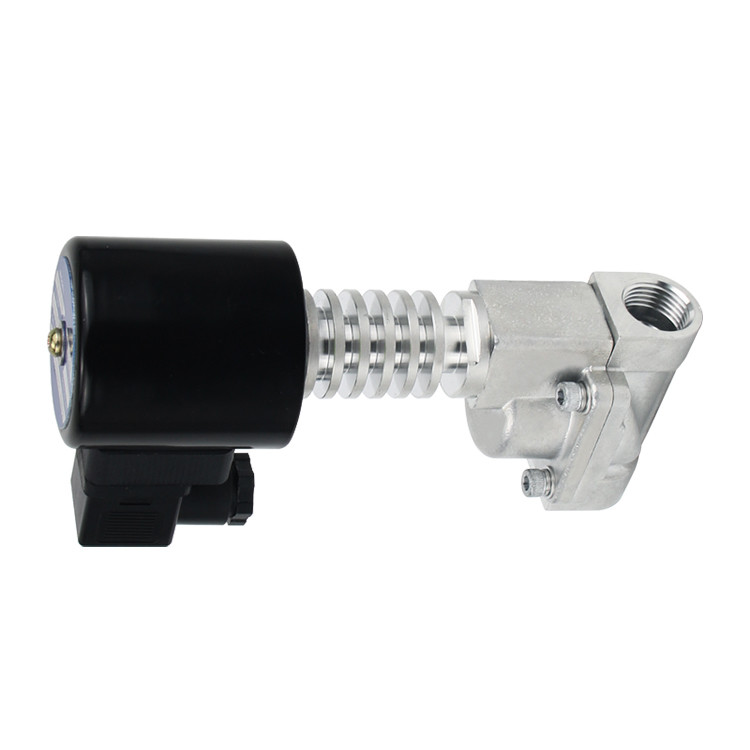

Detail image

300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve With PEEK Seals300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve With PEEK Seals300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve With PEEK Seals

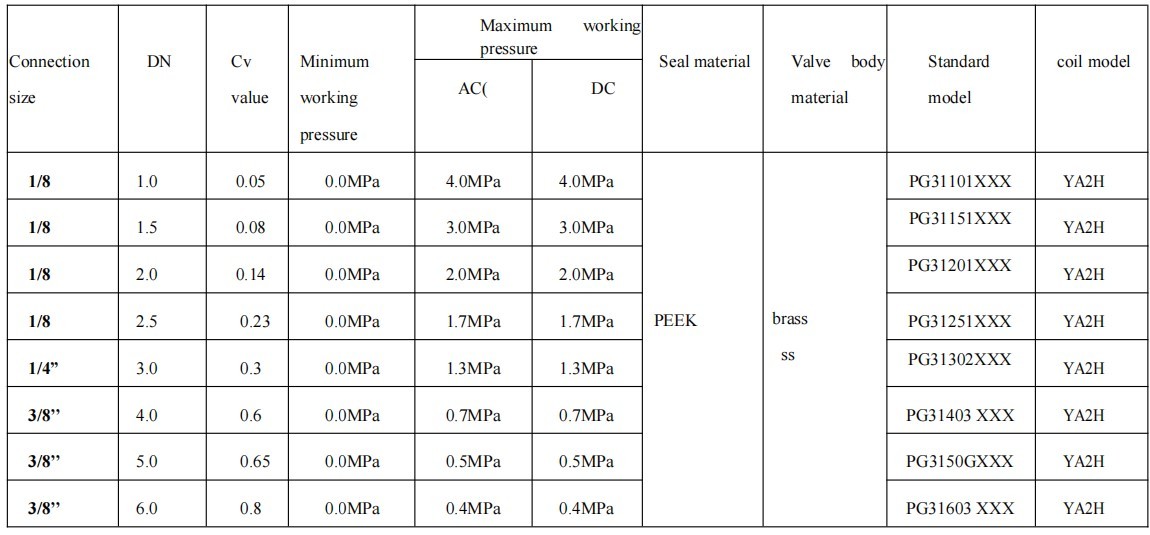

Data

300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve With PEEK Seals

Features

1. Direct-acting structure, low power
2. Long life of seals in steam environment
3. Suitable for long-term working piping system

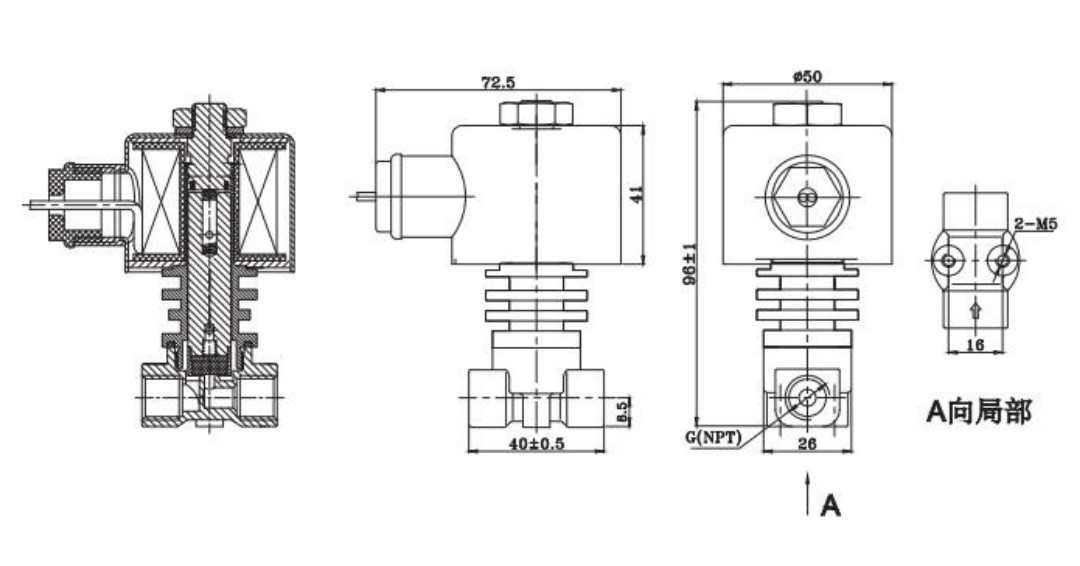

Size

300 Degree High Temperature 24V Stainless Steel Steam Solenoid Valve With PEEK Seals
