Description High nature pressure adjustable water air gas pressure regulator
High pressure gas pressure regulator, single stage diaphragm type pressure reducing structure, stable output pressure.
This pressure regulator is a universal pressure reducing valve with a wide range of uses, which can be used in semiconductors, laboratories, chemical analysis, instrumentation, etc. Pressure regulator an economical and ideal choice for regulating gas or liquid pressure. 316L stainless steel body, stainless steel valve stem and adjustment handle avoid environmental corrosion. The surface finish inside the body is high. You can choose a variety of different valve seat materials, a variety of inner diameters and a variety of pressure control ranges, and the stainless steel diaphragm provides reliability in pressure and flow control. This high pressure regulator has excellent accuracy, sensitivity and stable pressure set point.

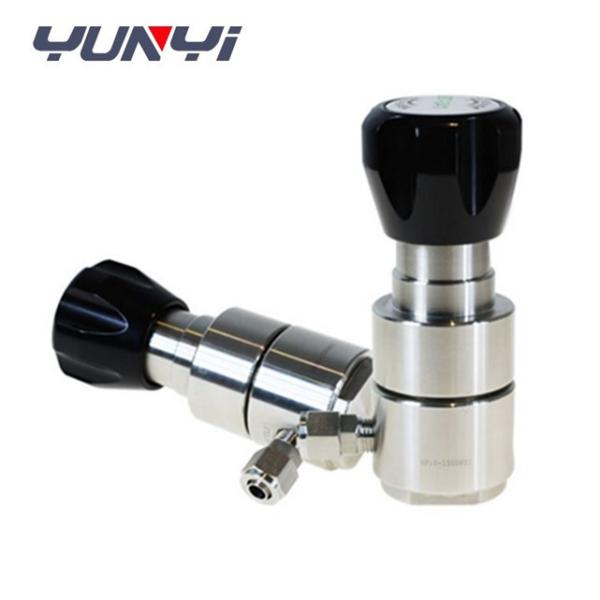

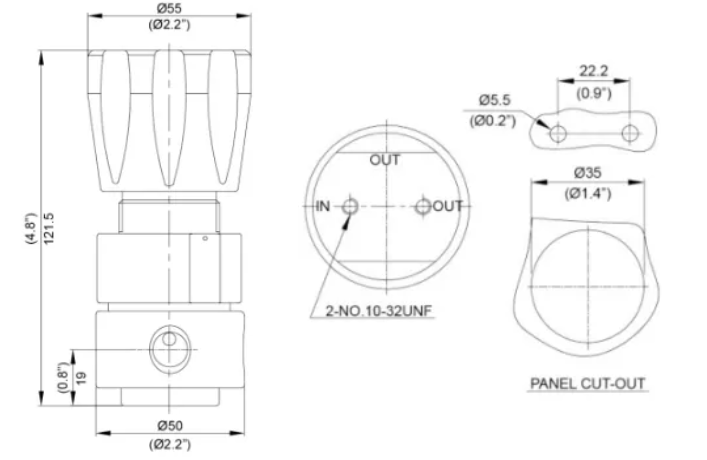

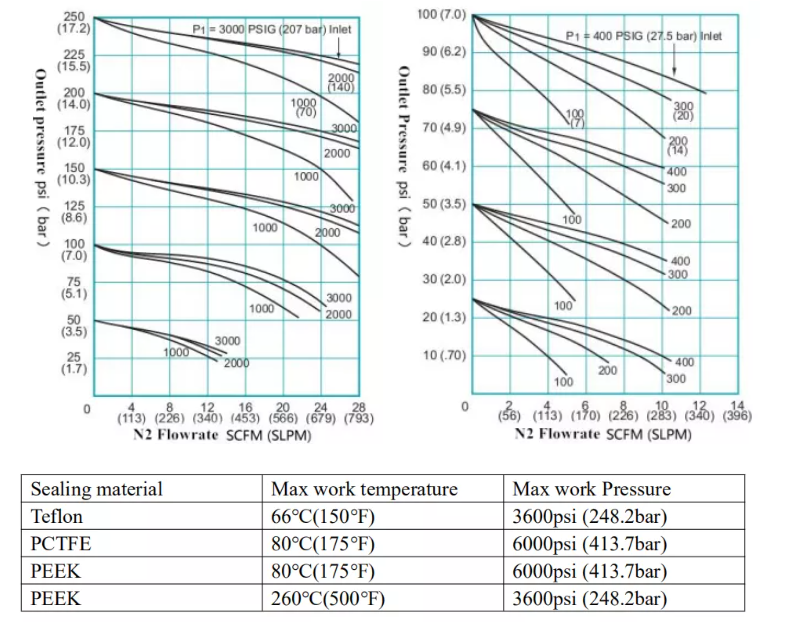

Detailed Images High nature pressure adjustable water air gas pressure regulator
Specification absolute hydraulic gauge smart water pressure transmitter sensor
| item | High pressure gas pressure regulator |
| standard input pressure | 1500psi, 3000psi, 6000psi |
| customize input pressure | 10000psi, 15000psi |
| output pressure | 0-50psi, 150psi, 300psi, 500psi, 750psi, 1500psi, 3000psi |
| Application | air, gas, oxygen, Nitrogen, water(need to customize) |
| Body material | ss316L or Brass |
| Seal material | PTFE, PCTFE, Viton, Vespel etc |
| Structure | diaphragm, piston, one stage, dual stage, back |
| Filter | optional, usually water must need |
| Cv | 0.06, 0.08 standard |
| Port thread | Standard 1/4NPTF, other can customize |
| Ports | standard 4 ports, can customize 3 ports, 6 ports |
Features absolute hydraulic gauge smart water pressure transmitter sensor
1. Light weight, small occupation space for installation, can meet a variety of gas or liquid applications.
2. The design of piston structure is compact.
3. Proper material adopts 316L stainless steel.
4. Installed with plate can be chosen.
5. Can be equipped with 20um filter at the entrance.
6.Pls make sure the using temperature, pressure,medium before choosing the product.
7. All of the 316L stainless steel meets the ASTM standard.
8.All of the ,PCTFE,PEEK,Viton sealing material adopts imported bar material for precision machining.
Application absolute hydraulic gauge smart water pressure transmitter sensor
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Selection Guide absolute hydraulic gauge smart water pressure transmitter sensor
| Model | Valve material | Inlet pressure | Outlet pressure | Pressure gauge | Inlet port | Outlet port |
| YR31 | l 316L | 0-6000psig 0-3000psig 0-1500psig 0-1000psig | 0-4000 psig 0-2000 psig 0-1000 psig 0- 500 psig | l With gauge (mpa) l With gauge (psig) l Without gauge | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom | 1/4'' NPT(F) 3/8'' NPT(F) 1/2'' NPT(F) 1/2'' NPT(M) 3/8'' fitting Or custom |
Product Tags:
|
|

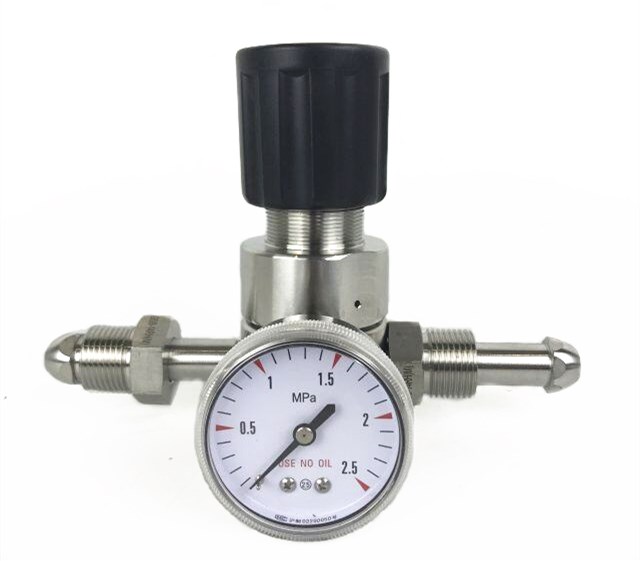

High Pressure Adjustable Water Air Gas Pressure Regulator Images
|
