304SS Hydraulic Safety Valve High Pressure Relief Valve

Hydraulic Safety Valve Pressure Relief Valve Safety Valve Price High Pressure Safety Valve

Description of Hydraulic Safety Valve Pressure Relief Valve Safety Valve Price High Pressure Safety Valve

The safety valve is a special valve that is in a normally closed state under the action of external force. When the pressure of the medium in the equipment or pipeline rises beyond the specified value, it discharges the medium to the outside of the system to prevent the medium pressure in the pipeline or equipment from exceeding the specified value. . Safety valves are automatic valves, mainly used in boilers, pressure vessels and pipelines. The control pressure does not exceed the specified value, which plays an important role in protecting personal safety and equipment operation. NOTE The safety valve must be pressure tested before it can be used.

Basic parameters Hydraulic Safety Valve Pressure Relief Valve Safety Valve Price High Pressure Safety Valve

Characteristics of Hydraulic Safety Valve Pressure Relief Valve Safety Valve Price High Pressure Safety Valve

■ Working pressure up to 6000 psig (413 bar)

■ Multiple springs, can choose to set the pressure range

■ It is possible to provide a valve with a specified set pressure set at the factory.

■ 1/4 in. and 6 and 8 mm terminations - R3A Series Valves

■ 1/2 in. and 12 mm terminations - R4 series valves

Low pressure valve

■ Working pressure up to 300 psig (20.6 bar)

■ Use a spring for the entire set pressure range

■ It is possible to provide a valve with a specified set pressure set at the factory.

■ 1/4 in. and 6 and 8 mm terminations - RL3 series valves

■ 1/2 in. and 12 mm terminations - RL4 series valves

Safety Pressure Relief Valve 1/4

304SS Hydraulic Safety Valve

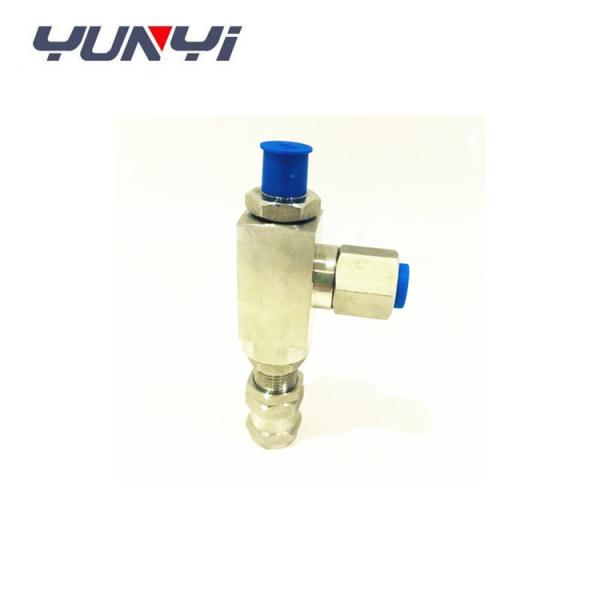

304SS Hydraulic Safety Valve High Pressure Relief Valve Images
