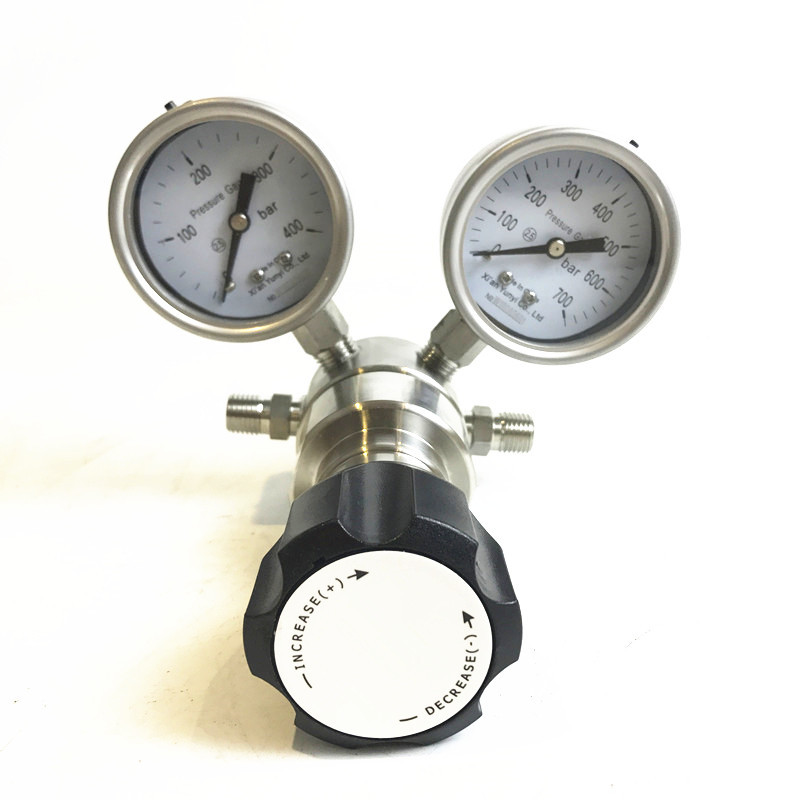

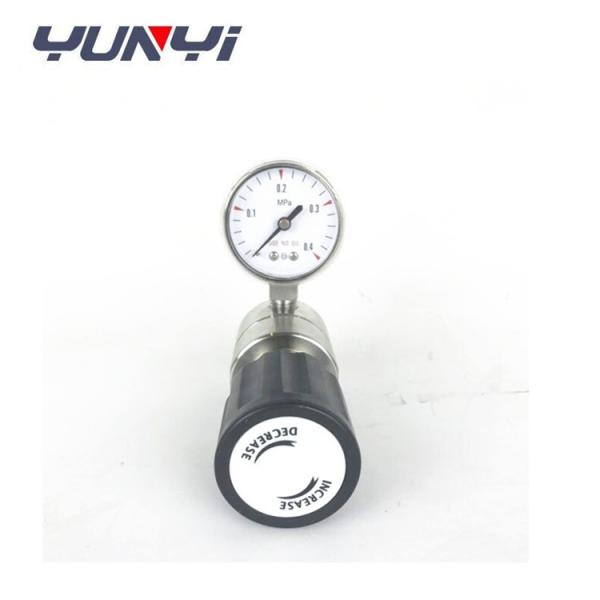

10000psi High Purity Gas Pressure Regulator Stainless Steel

  • 1
  • 2

Brand Name : Yunyi

Model Number : YR31

Certification : CE

Place of Origin : China

MOQ : 1pc

Price : USD109-USD168/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100PCS/week

Delivery Time : 7days

Packaging Details : Carton box

Item : Stainless steel gas pressure regulator

Material : stainless steel

Inlet pressure : 0-10000psi

Outlet pressure : 0-6000psi

Thread size : 1/2npt or 1/4npt

Category : Pressure Gauge

Contact Now

Product Name High Purity Gas 10000psi Single Stage Stainless Steel Pressure Regulator (YR31 Series)
Description The YR31 Series stainless steel pressure regulator features a piston-type decompression structure, ensuring a stable outlet pressure. It is primarily used in applications requiring high inlet pressure and is suitable for a wide range of gases, including high purity gas, standard gas, and corrosive gas.
Applications - Laboratory use<br>- Gas chromatography<br>- Gas lasers<br>- Gas buses<br>- Petrochemical industry<br>- Test equipment
Design Features - Double-stage decompression structure<br>- Hard seal form for valve body and diaphragm<br>- Easily cleanable internal structure<br>- Integrated filter<br>- Panel mountable<br>- Optional needle valve or diaphragm valve outlet
Materials - Valve body: 316L Brass or Nickel-plated brass<br>- Top cover: 316L Stainless Steel<br>- Diaphragm: 316L Stainless Steel<br>- Filter: 316L Stainless Steel (10μm)<br>- Valve seat: PCTFE, PTFE, or Vespel<br>- Spring: 316L Stainless Steel
Basic Parameters - Maximum Inlet Pressure: 3000psi, 6000psig, 10000psi<br>- Outlet Pressure Options: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig, 0-4000psi, 0-6000psi<br>- Safety Testing Pressure: 1.5 times the maximum inlet pressure<br>- Working Temperature Range: -23℃ to 74℃ (-10°F to 165°F)<br>- Leakage Rate: 2*10-8 atm cc/sec He<br>- CV Value: 0.02, 0.06, 0.08, 0.2, or other customized values<br>- Weight: Approximately 1.5kg

Model Valve material Inlet pressure Outlet pressure Pressure gauge Inlet port Outlet port
YR31
  • 316L
  • Brass
  • Nickel-plated brass
  • 0-10000psi
  • 0-6000psig
  • 0-3000psig
  • 0-1500psig
  • 0-1000psig
  • 0-6000psig
  • 0-4000psig
  • 0-2000psig
  • 0-1000psig
  • 0- 500psig
  • With gauge (mpa)
  • With gauge (psig)
  • Without gauge

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom

1/4'' NPT(F)

3/8'' NPT(F)

1/2'' NPT(F)

1/2'' NPT(M)

3/8'' fitting

Or custom
