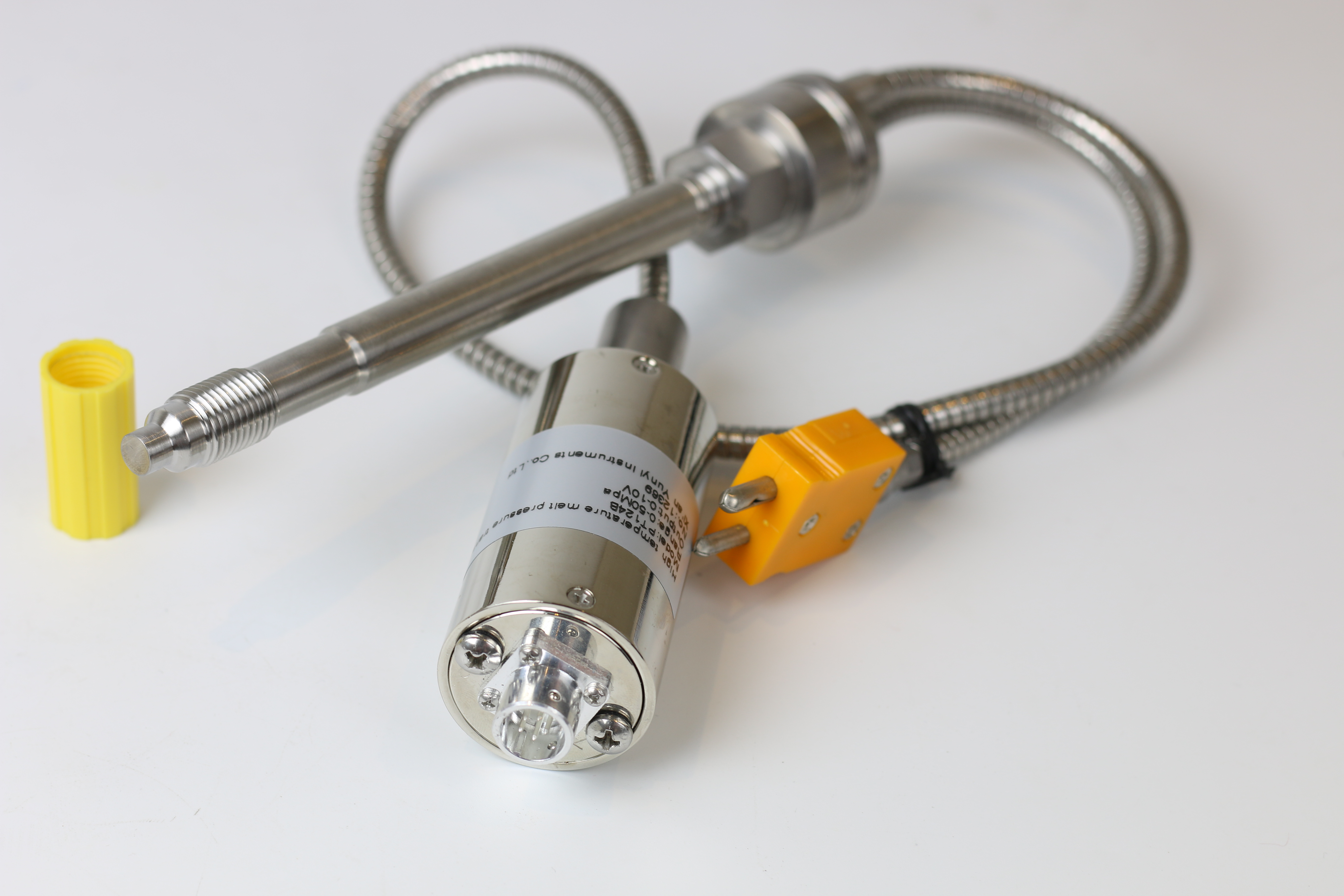

Pt124b-123 Rubber Extruder Melt Pressure Sensor Melt Pressure Transmitter Transducer
Description Pt124b-123 Rubber Extruder Melt Pressure Sensor Melt Pressure Transmitter Transducer
Rigid rod and hose isolation, isolation diaphragm structure, medium temperature below 450 ℃, with good stability and accuracy; used in rubber, plastics, chemical fiber polyester nylon, polyester, and other mechanical equipment of high-temperature steam fluid / gas media pressure measurement and control. melt pressure Transmitters
Parameter Pt124b-123 Rubber Extruder Melt Pressure Sensor Melt Pressure Transmitter Transducer
| Technical indicators: |
| Range: 0 ~ 1-300MPa Overall accuracy: 0.25% FS; 0.5% FS Output: 2.0mV / V; 4 ~ 20mA; 0 ~ 5V; 1 ~ 5V; 0 ~ 10V Calibration signal: 80% FS calibration; zero and span adjustment Working temperature: -10 ~ 450 ℃ Supply voltage: Sensor: 10VDC (6-12VDC) transmitter: 24VDC (9 ~ 36 V) Long-term stability: 0.1% FS / year Insulation resistance: more than 2000MΩ 100VDC Vibration: 20HZ-1KHZ to mechanical vibration, the output changes less than 0.1% FS Sealing class: IP65 Signal leads: five-pin connector 5pin Structural dimensions: long straight bar 152mm, hose length: 470mm Threaded connection: M14X1.5 (Universal); M16X1.5; M18X1.5; M20X1.5; M22X1.5 (Universal) Other threads can design melt pressure transmitter |
Features Pt124b-123 Rubber Extruder Melt Pressure Sensor Melt Pressure Transmitter Transducer
1. DigitalASIC, accuracy and stability
2. Drift affect small
3. Excellent long-term stability
4. Excellent anti-jamming capability
5. Overvoltage overcurrent protection, reverse polarity protection
6. Excellent selection of imported sensors core
Applications Pt124b-123 Rubber Extruder Melt Pressure Sensor Melt Pressure Transmitter Transducer
Chemical fiber Equipment
Plastic and Rubber manufacturing equipment
Medicine & Food process equipment ,
Drinking water environmental monitoring occasion
Other pressure measurement and Control
