YK-100B Digital Pressure Gauge Accurate Measurements for Various Applications

Brand Name : Clouds

Model Number : YK100B

Certification : ISO CE

Place of Origin : China

MOQ : 1

Price : USD$112-USD$125/Unit

Payment Terms : T/T, Western Union ,paypal

Supply Ability : 800 unit/month

Delivery Time : 5-10 working days

Packaging Details : Standard export package

Display Function : Colour graphic display

Shell Material : PP plastic

Measuring Range : -0.1~100MPa

Analog Output : 4-20MA

Pressure Type : gauge pressure

Overload Pressure : 150%

Contact Now

Description

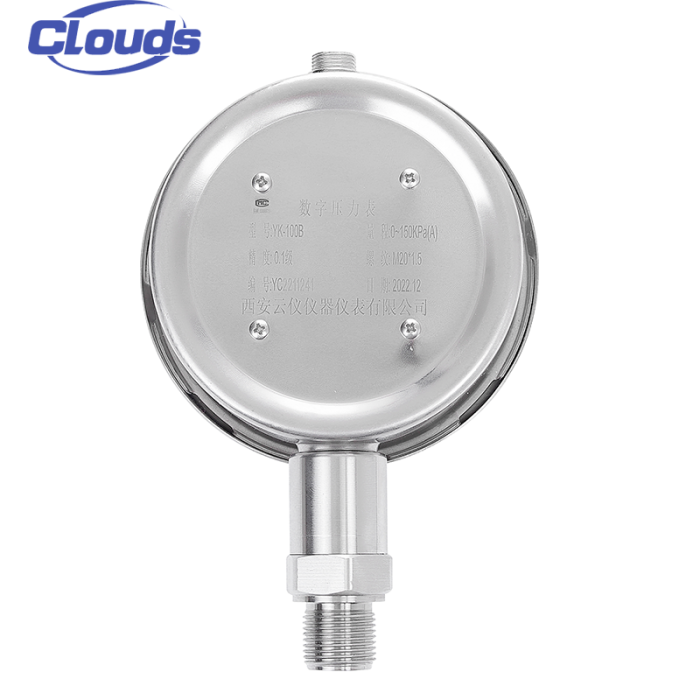

The YK-100B Digital Pressure Gauge represents an innovative micro-power intelligent device developed by our company. Through the utilization of cutting-edge micro-power components and proprietary software processing technology, it delivers continuous and precise pressure measurements. Equipped with an internal lithium battery, the gauge can operate seamlessly for over 3 years, functioning around the clock. The device boasts a large-screen segment LCD display with a broad viewing angle, facilitating clear and intuitive readings.

To guarantee reliability and accuracy, each unit undergoes stringent testing processes at our factory, including high and low-temperature aging, stress aging, and temperature compensation procedures. These measures ensure the gauge maintains its precision even in challenging conditions, with a 99% confidence probability within one year, within a temperature range of (0 ~ 50) °C.

Specification

Specification Description
Range -0.1~0~250MPa
Accuracy 0.25, 0.1, 0.05
Measuring Medium Water, gas, etc. compatible with stainless steel
Pressure Type Vacuum, Gauge, Absolute Pressure
Case Material SS (Stainless Steel)
Power Rechargeable lithium battery
Display 5-digit dynamic display + simulated light bar instructions
Medium Temperature -10～60°C
Connection Size M20x1.5 Male or OEM
Working Humidity ≤80%RH
Pressure Unit MPa, Kpa, PSI, mmHg, Bar, kgf/cm2, inHg, inH2O
Working Temperature Not Specified

Features

  • Micro power consumption, high accuracy, high defifinition digital LCD display
  • Small size, easy to operate, easy to use in fifield calibration and precise pressure measurement
  • Intelligent calibration, linearity repair, two second magnetic pen induction zero adjustment
  • The liquid crystal display has a dynamic pressure value display function, which can directly display the pressure percentage
  • Pressure Units: mmH2O mmHg psi kPa MPa Pa mbar bar Up to ten pressure units (optional)
  • The digital pressure gauge comes with 485 RTU protocol, and the supporting PC software can monitor the trans mission data in real time
