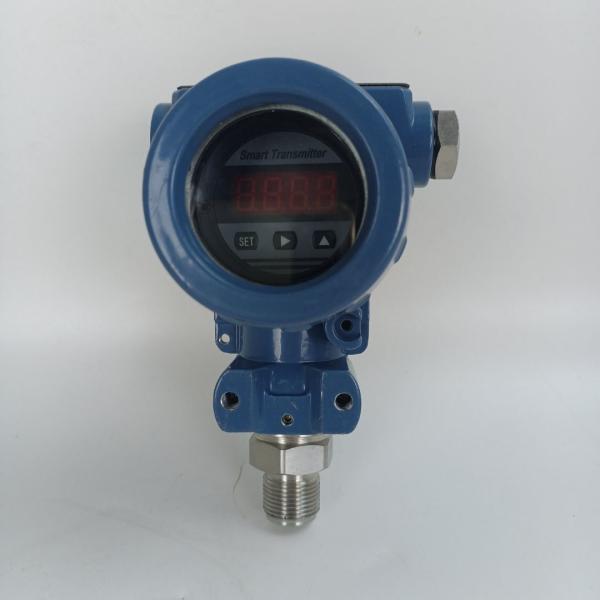

The 2088 Explosion Proof Smart Water Pressure Sensor Transmitter Pressure Sensor is a highly reliable and advanced device developed by our company, utilizing cutting-edge sensor technology and production equipment. It features an imported quartz film pressure sensor core, ensuring exceptional sensitivity and accuracy.
The entire unit undergoes rigorous assembly and testing processes to meet the technical specifications of similar imported products, guaranteeing consistency and reliable compatibility in industrial production. It's important to note that for different applications, the sensor core can also be equipped with a silicon piezoresistive core or ceramic core.
Here are the specifications of the Smart Water Pressure Sensor:
Through current: Rated range of 4-20mA, with a limit range of 24mA.
Temperature range: Rated operating range of 0-40°C, with a limit working range of -20 to 50°C.
Relative humidity: 20% to 80%RH.
Display range: -1999 to 1999.
Accuracy grade: ±0.2%FS+1 word.
Display mode: Utilizes black LCD characters with a character height of 8.5mm and character width of 4mm. Backlight can be added for enhanced visibility.
Panel size: Diameter of 38mm and height of 16mm.
Chassis size: Diameter of 48mm and thickness of 2mm.
Fixing method: Chassis is secured using screws.
The Smart Water Pressure Sensor offers the following features:
Wide pressure measurement range: Optional ranges include -0.1 to 1.0MPa, 100MPa, or 300MPa.
Wide temperature measurement range: Optional ranges include -60°C, -45°C, up to +85°C, +125°C, +150°C, or +300°C.
Suitable for measuring various gases, liquids, and steams made of stainless steel and titanium alloy.
Communication mode: Provides analog 4-20mA or 1-10V output with HART Modbus 485 communication.
Laser marking for strong recognition.
Sealing method: Offers options for end face seal or double "O" seal ring seal.
Strong expansion function: Allows for adjustable range, analog quantity, switch quantity, and optional digital communication.
The integrated pressure-sensitive diaphragm is oil-free, non-sticking, and highly resistant to vibration and impact.
