Micro Differential Pressure transducer/Air pressure sensor /Differential pressure transmitter
Description of Micro Differential Pressure transducer/Air pressure sensor /Differential pressure transmitter
Micro differential pressure transmitter is suitable for differential pressure measurement of dry gas. It is the responsibility of the operator to verify that the equipment is suitable for the operating conditions of the application. If you have any questions, please contact our sales department to ensure the correct application of the transmitter. The company will not take any responsibility for the impact caused by improper selection.
This series of micro differential pressure transmitter adopts piezoresistive pressure sensor chip, and uses the film resistance on the substrate to carry out zero point correction, zero point
temperature compensation and sensitivity compensation. The high-performance and stable silicon chip package makes it high static pressure resistance, anti-interference, stable and reliable. Therefore, the product can be applied to the micro differential pressure field combination of various gas measurement. It is an ideal micro differential pressure measuring instrument in the field of industrial automation.
Parameter of Micro Differential Pressure transducer/Air pressure sensor /Differential pressure transmitter
| Range | -10000pa~10000pa |
| Accuracy | 1.0% FS |
| Output signal | 4-20mA, 0-10V, RS485 |
| Supply voltage | 12VDC~236VDC |
| Process connection | φ6 |
| Material | ABS plastic |
| Protection | IP65 |
| Application | Clean and dry air |
| Operating temperature | -20-80 ° C |
| Safety overload | 150% |
| Ultimate Overload | 200% |
| Temperature drift | 0.02% FS / ° C |
| Long-term stability | 0.2% FS / Year |
Feature of Micro Differential Pressure transducer/Air pressure sensor /Differential pressure transmitter
a) Integrated chip, wide voltage power supply
b) Frequency intercept design, strong anti-interference ability and lightning protection
c) Current limiting, voltage limiting, reverse connection protection (current limiting output)
d) High precision and stability
e) Self correcting zero point
Application of Micro Differential Pressure transducer/Air pressure sensor /Differential pressure transmitter
Medical equipment
HVAC
Industrial control
Building automation

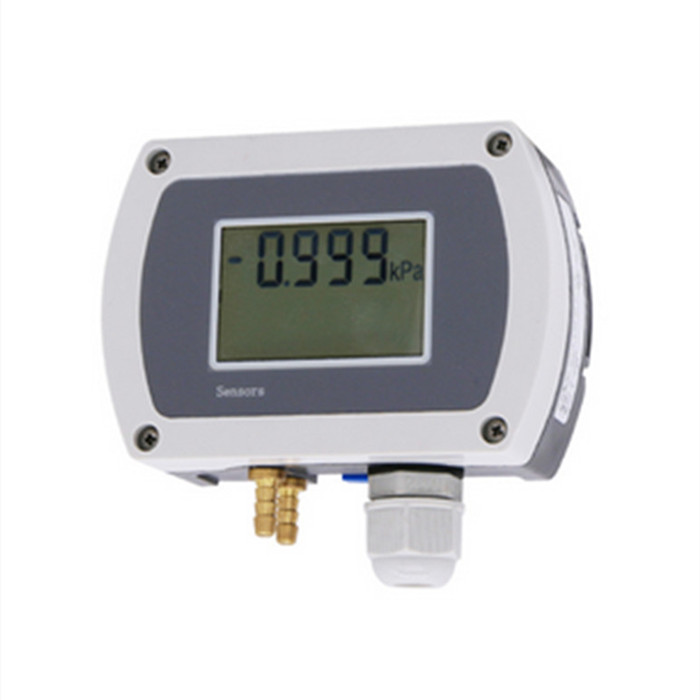

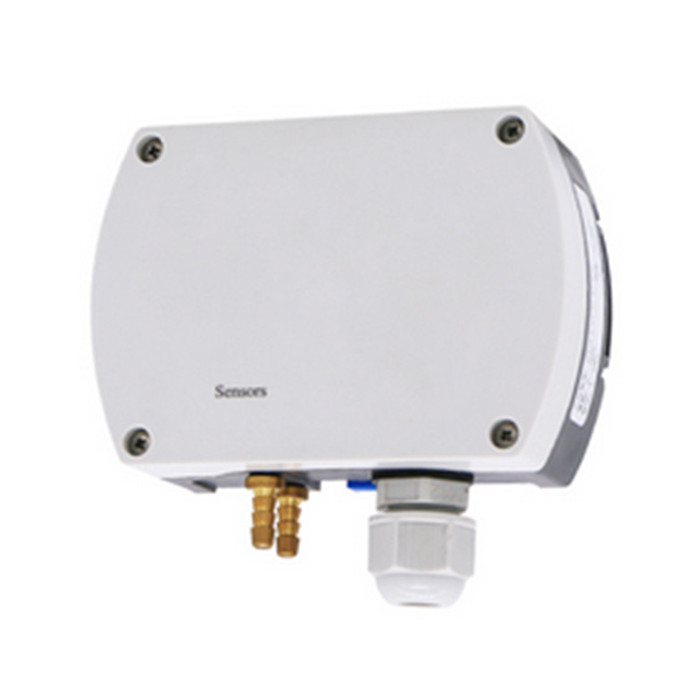

Detailed picture Micro Differential Pressure transducer/Air pressure sensor /Differential pressure transmitter

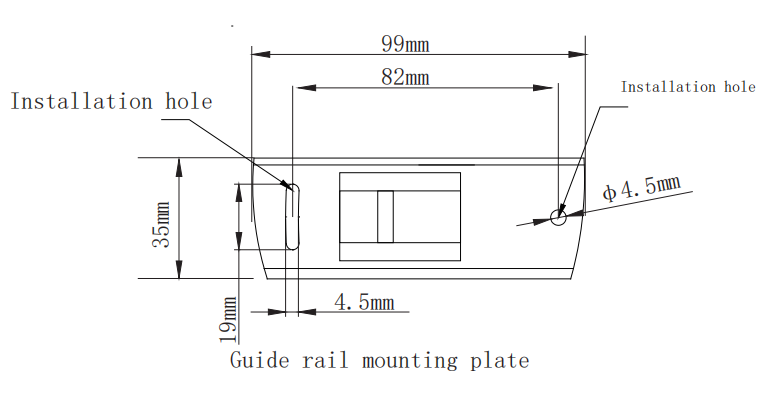

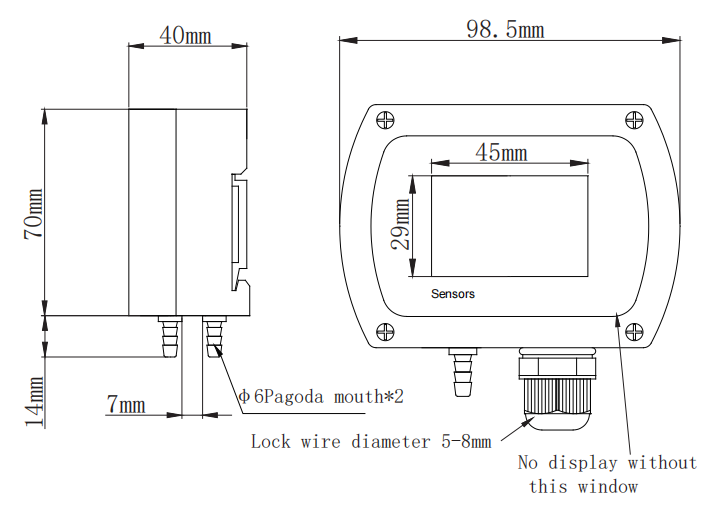

Dimension Micro Differential Pressure transducer/Air pressure sensor /Differential pressure transmitter
