Industrial Differential Pressure Transmitter 3051 20mA HART Capacitive

Brand Name : Yunyi

Model Number : 3051

Certification : /

Place of Origin : China

MOQ : 1

Price : $240

Payment Terms : T/T, Western Union

Supply Ability : 50 per week

Delivery Time : 10 works day

Packaging Details : standard

Pressure range : -700kpa~700kpa

Measurement Type : Differential, Gage, Absolute, Level, Flow

Output signal : 4-20mA hart

Thread connection type : 1/2 or 1/4npt

Contact Now

Description 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter

3051 Intelligent 4~20mA HART Capacitive Differential industrial pressure transmitter with the advanced micro processing technology and digital communication technology, high precision, high stability,alibrate parameters through computer or panel keys,remote parameter setting, remote control, self diagnosis and other functions,easy to operate with HART protocol.

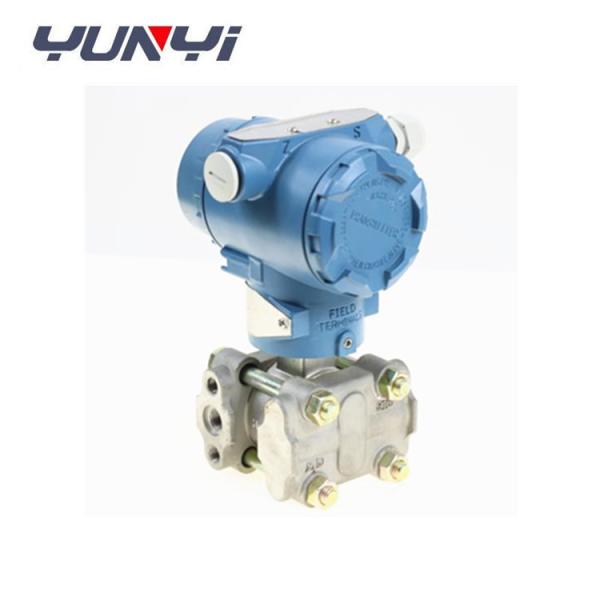

Detailed Images 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter
Industrial Differential Pressure Transmitter 3051 20mA HART Capacitive

Specification 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter

3051 digital pipe pressure sensor
Measuring Rang Differential Pressure: 0~1Kpa, 6Kpa, 40Kpa, 200Kpa......2Mpa, 8Mpa
Gauge Pressure: 0~40Mpa
Absolute Pressure 0~40Mpa
Turn Down Ration 40:1
Application Different Pressure, Gauge Pressure, Absolute Pressure
Accuracy ±0.1, 0.3, 0.5% of Span
Process Fluid Liquid, Gas, Vapor
Temperature Drift Zero Drift: 0.5%FS/50℃
Span Drift:0.7%FS/50℃
Stability ±0.1%/year
Working Temperature -40℃ ~ 100℃
Ambient Temperature -40℃ ~ 85℃
Storage Temperature -40℃ ~ 100℃
Power Supply 9~45V DC
Output 4~20mA 2 wires Hart Protocol
Max Pressure 40Mpa
Respond Time 200ms
Humidity Limits 0 to 100% Relative Humidity
Turn On Time 2 Seconds With Minimum Damping
Display LCD LED
Electrical Connections 1/4" Npt (M20 Conduit Threads)
Temperature Effect ±0.18% of Span Per 200C
Process Connection 1/4-18Npt
Flange SS304 SS316
Diaphragms SS316L / Hastelloy B / Hastelloy C / Monel / Tantalum
Wetted O-Rings Buna N/Viton/PTFE
Bolts & Nuts Carbon Steel / SS316
Mounting Bracket Carbon Steel / SS304 or SS316
Name/Tag Plate SS304 / SS316
Coverter Housing Low Copper Cast Aluminium Alloy With Polyurethane
Fill Fluid Silicone / Fluorine Oil
Casing Protection IP67
Explosion Proof Exd II BT4 Exia II CT6
Process Connection Flange, Direct, Side Mounted, Diaphragm, Insert Type
Weight Approximately 3.5KGS


Features 3051 Intelligent 4~20mA HART Capacitive Differential Industrial Pressure Transmitter

  • Zero automatic adjustment
  • Control parameter password lock
  • Software compensation, fault self diagnosis
  • Fieldbus, HART protocol communication
  • No pressure is introduced when the range is changed
