High Accuracy Integral Compact Orifice Plate Flowmeter

Brand Name : Yunyi

Model Number : UC800

Certification : CE,EXPLSION PROOF

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per week

Delivery Time : 5-8 work days

Packaging Details : carton

Name : China Made High Accuracy Integral Compact Orifice-Plate Flowmeter

Sensor Material : stainless steel 316

Pressure : -0.1-40Mpa

Output : 4-20mA

Power : 24V

Shell material : Aluminum alloy

Accuracy : 0.2%,0.5%

Temperature : -20-80c

Sensor type : Capacitive

Electrical Interface : M20*1.5 or 1/2npt

Process connection : 1/2npt or 1/4 npt

Accessary : U-shaped L-shaped, mounting bracket

Contact Now

China Made High Accuracy Integral Compact Orifice-Plate Flowmeter

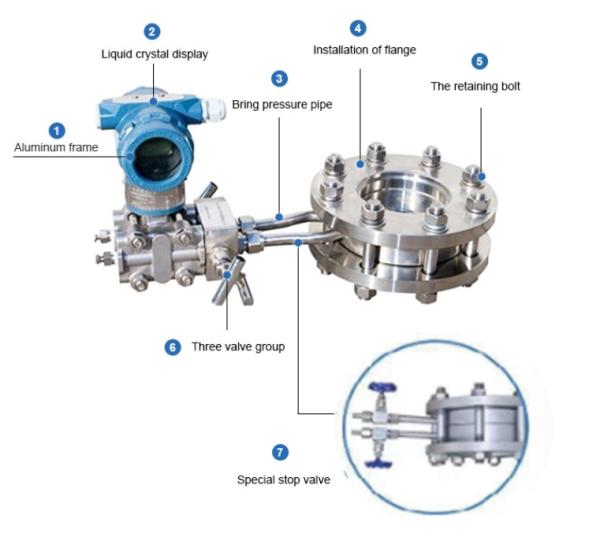

High Accuracy Integral Compact Orifice Plate Flowmeter

Description Intelligent China Made High Accuracy Integral Compact Orifice-Plate Flowmeter

Orifice flowmeter is one kind of differential pressure flow meterwhich fitted with standard orifice
throttling element. It has long history; plenty reference material
on both theory and practice,mature on
usage. It is the most popular flow meter which widely used in many field any industry fields as
Petroleum,chemical, power, textile, metallurgical, military and scientific research.

Features China Made High Accuracy Integral Compact Orifice-Plate Flowmeter

  • Designed with built-in flow calculations for direct reporting of fully-compensated mass flow
  • Compact orifice plate available in 0.5 - 12 in. (15 - 300 mm) line sizes for application flexibility
  • Advanced diagnostics provide diagnostic coverage to detect abnormal process conditions and electrical loop issues

Applications China Made High Accuracy Integral Compact Orifice-Plate Flowmeter

Nominal Path DN20-DN1000
Design and manufacture according to national standard GB/T2624-93
According to the national verification regulation JJG 640≤94, the factory verification is carried out.
Basic Precision ±0.5% ±1% ±1.5%
Flow Range ≥1:15
Nominal Pressure 0.6,1.0,1.6,2.5,4.0,6.4,10(MPa)
Measured Medium Saturated Steam, Superheated Steam, Water, Air, Natural Gas, Other Mixed Media
Measured Medium Temperature -10~+450℃
Power Supply Intelligent Flow Totalizer 220VAC, Flow Transmitter 24VDC (powered by accumulator)
Output Signal 4029mA DC or RS485 communication
Explosion-proof performance Intrinsically safe ibIICT5
