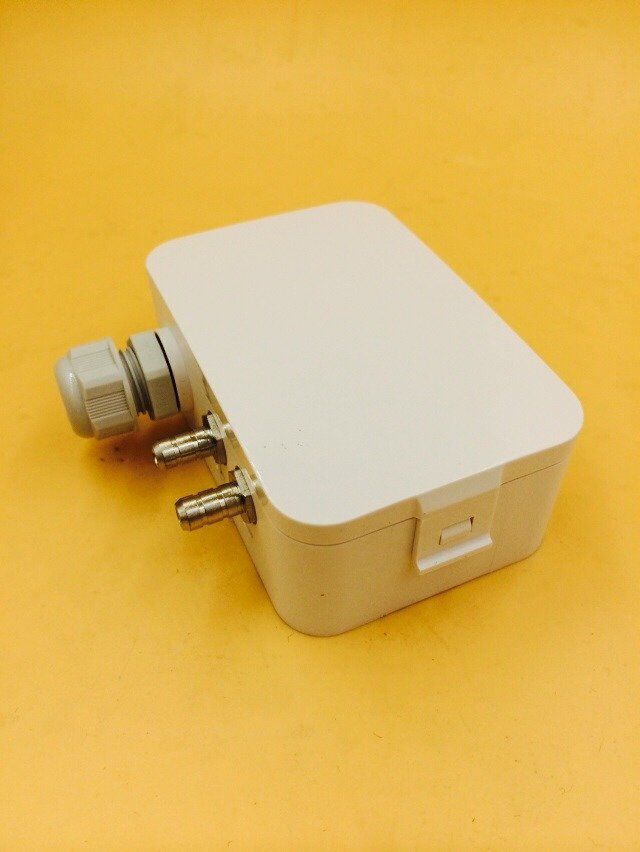

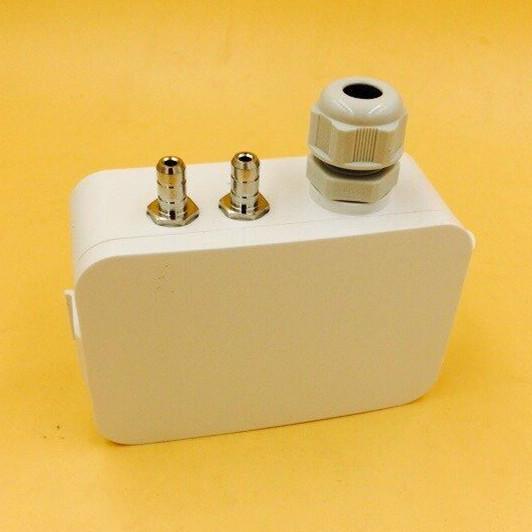

White 4-20mA ABS Plastic Low Differential Pressure Transmitter

  • 1
  • 2
  • 3

Brand Name : Yunyi

Model Number : FM108

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per week

Delivery Time : 5-8 work days

Packaging Details : carton

Name : Low Differential Pressure Transmitter 4-20ma Modbus Output Hvac Application

Material : ABS plastic

Pressure : 0-10000pa

Output : 4-20mA,0-5V,0-10V,1-5V,RS485

Power : 24V

Temperature : -20-80c

Color : white

Display : No

Contact Now

Low Differential Pressure Transmitter 4-20ma Modbus Output Hvac Application

Features Low Differential Pressure Transmitter 4-20ma Modbus Output Hvac Application

This transmitter can deteet differential pressure or gauge pressure then convert this pressure difference to a proportional analoguc output signal, in order to monitor and control building automation with precise pressure and flow
According to the specific conditions, set the pressure by dial-up switch
Range:0--10Pa/0--10.000Pa Accuracy:1.0%
Selectable pressure unit
LCD backlit digital display or without display Auto zero point when power on
Selectable response time field adjustable from 0.5S-4S Manual zero point push button
Adopt the imported core
Separated mounting blanket for stepped installation

Parameter Intelligent Low Differential Pressure Transmitter 4-20ma Modbus Output Hvac Application

Range

FM110 -1,000 ~ +1,000Pa Minimum 0

~+ 100Pa

FM112 -10,000 ~+ 10, 000Pa Minimum 0 ~+ 1000Pa
Accuracy ±1. 0%
Pressure unit

Pa, mm H 2 O, mbar, in WC, mm HG, da Pa, KPa, h Pa

Output signal

0~ 5VDC,0~10VDC,4~20mA,RS- 485

Analog signal: current type 2-wire , voltage type 3- wire, current and voltage type 6-wire; Digital signal: RS-485 4-wire

S u p p l y voltage

6-wire output: supply voltage is 16~30VAC/VDC, can be collocated with 24VDC adaptor (3.5×1.35mm)

Current type 2-wire output: supply voltage is non- polarized① 12~30VDC .(The positive pole and negative pole of voltage can be connected in a contrary way)

Voltage type 3-wire output: supply voltage is16~30 VAC/VDC

RS-485 4-wire output: supply voltage is12~30VAC/VDC
Power consumption

≤1. 5W
① non-polarized: Theinput power is not divided into positive or negative
Response Time 0. 5s, 1s, 2s, 4s

Resolution

 FM110 FM112

1Pa,0.1mmH2 O,0.01mbar,0.004inWG,

0.007mmHG,0.1daPa,0.001KPa,0.001hPa
FM116 0.1Pa,0.01mmH2 O,0.01mbar,0.01daPa,0.001hPa
Zero Calibration Manual with push button or automatic at starting for zero calibration
Media Air and neutral gases
Tolerated Overpressure 15KPa( FM110 );150KPa( FM112 );4.5KPa( FM116 )
Operating Temperature - 10~+ 60℃
Storage Temperature - 10~+ 70℃
Model Unit Pa mmH2 O mbar inWG mmHG daPa KPa hPa

4

 FM116 10. 0 1. 00 0. 100 / / 1. 00 / 0. 100
3 FM110 100 10. 0 1. 00 0. 40 0. 75 10. 0 0. 100 1. 00
2
1
FM112 1,000 100. 0 10. 00 4. 00 7. 50 100 1. 000 10. 00

4

 FM116 25. 0 2. 50 0. 250 / / 2. 50 / 0. 250
FM110 250 25. 0 2. 50 1. 00 1. 87 25. 0 0. 250 2. 50
3
2
1
FM112 2,500 250.0 25. 00 10. 00 18. 75 250. 0 2.500 25. 00

4

 FM116 50. 0 5. 00 0. 500 / / 5. 00 / 0. 500
FM110 500 50. 0 5. 00 2. 00 3. 750 50. 0 0. 500 5.00
3
2
1
FM112 5, 000 500. 0 50. 00 20. 00 37. 50 500. 0 5. 000 50. 00

4

 FM116 75. 0 7. 50 0. 750 / / 7. 50 / 0. 750
FM110 750 75. 0 7. 50 3. 00 5. 62 75. 0 0. 750 7. 50
3
2
1
FM112 7, 500 750. 0 75. 00 30. 00 56. 20 750. 0 7. 500 75. 00

4

 FM116 100. 0 10. 00 1. 000 / / 10. 00 / 1. 000
FM110 1,000 100. 0 10. 0 4. 00 7. 50 100. 0 1. 000 10. 00
3
2
1
FM112 10, 000 1, 000. 0 100. 00 40. 00 75. 00 1,000.0 10. 000 100. 00
