Smart LED Display Pressure Transducer Sensor Digital Differential Pressure Transmitter

Brand Name : Yunyi

Model Number : UC800D

Certification : CE

Place of Origin : China

MOQ : 1

Price : 125~150USD/PCS

Payment Terms : T/T, Western Union

Supply Ability : 100pcs per week

Delivery Time : 10 work days

Packaging Details : Carton Packaging

Name : Digital Pressure Transmitter

Output : 4~20mA 0~10/20mA 0/1~5VDC RS485

Pressure Range : 0 ~ 40MPa

Power Supply : DC 24V, 12 ~ 36VDC, 18.5 ~ 220VDC, AC 50HZ, 45V

Warranty : 12 Months

Accuracy : 0.1%F.S; 0.2%F.S; 0.5%F.S

Insulation resistance : 100MΩ,100VDC

Medium Temperature : -40 ~ 85℃

Contact Now

Hot Sale Digital Differential Pressure Transmitter Smart LED Display Pressure Transducer Sensor

Description Smart Digital Differential Pressure Transmitter

The LED display internal thread differential pressure transmitter is composed of an isolation diaphragm differential pressure sensor and an integrated circuit. It has the characteristics of high precision, good stability, high reliability and good sensitivity. DP differential pressure transmitters can also build high-performance microprocessors (MCUs) that can correct nonlinearity and compensate for temperature drift. The dp pressure sensor enables precise data transmission, local device diagnostics and long-distance two-way communication. High quality, low price, high stability Chinese differential pressure transmitter. This transmitter can be used in a variety of industries.

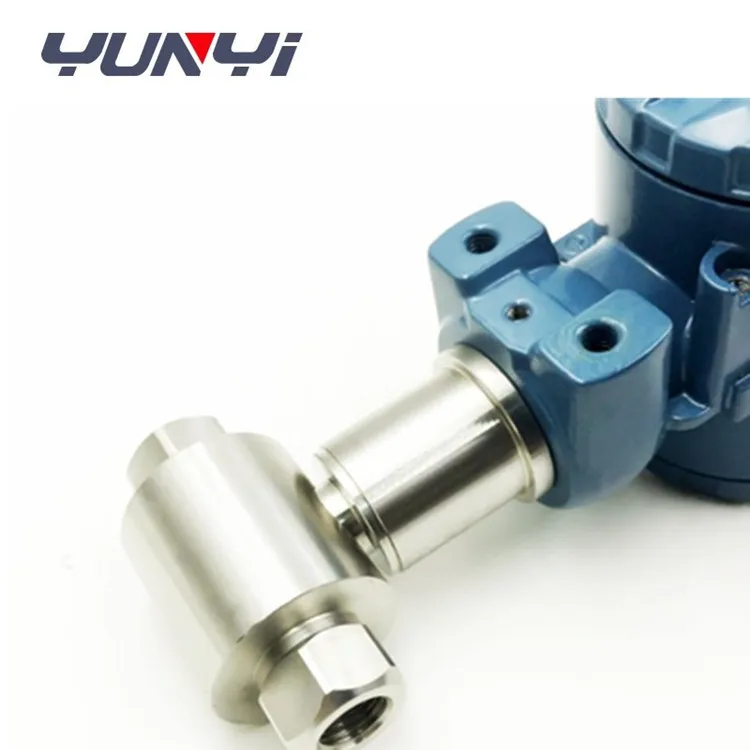

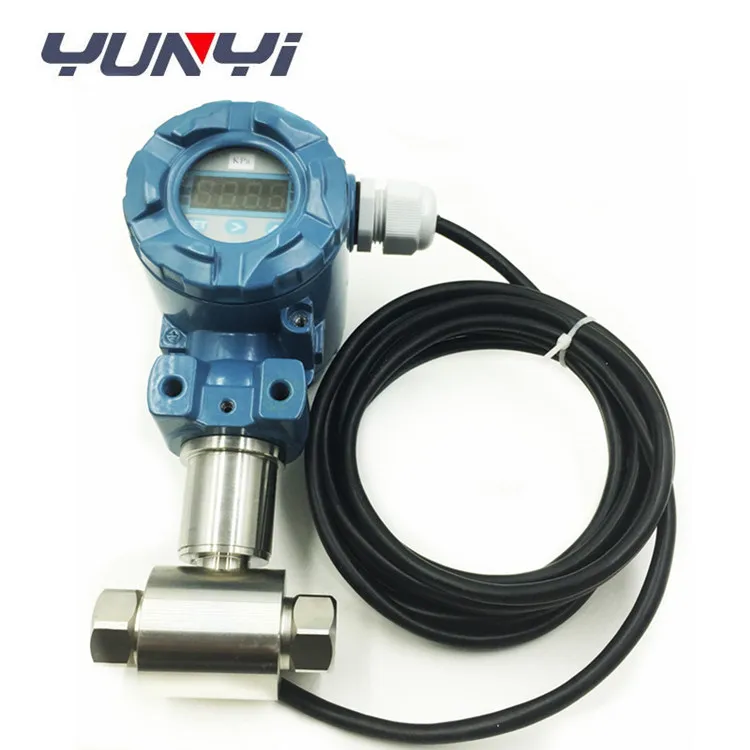

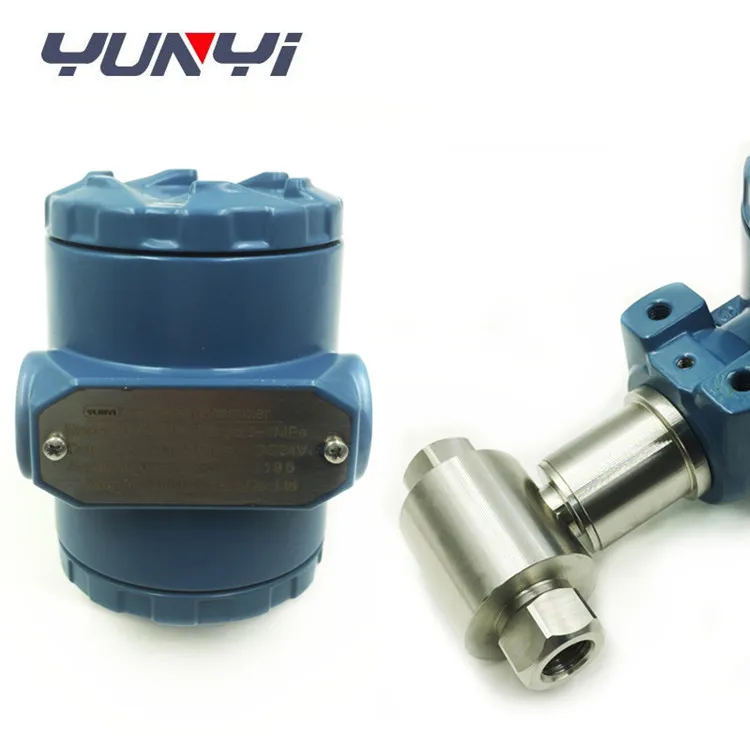

Detailed Images Smart Digital Differential Pressure Transmitter

Smart LED Display Pressure Transducer Sensor Digital Differential Pressure TransmitterSmart LED Display Pressure Transducer Sensor Digital Differential Pressure TransmitterSmart LED Display Pressure Transducer Sensor Digital Differential Pressure Transmitter

Specification Smart Digital Differential Pressure Transmitter

Item
LED Display inner thread differential pressure transmitter
Measurement Range
0~20Kpa…..35Kpa...~2MPa
Medium
Liquids or gases that can compatible with 316SS
Proof pressure
3X rated range or 7MPa(Which ever is less)
Accuracy
±0.25%(Typical) ±0.5%(Max.)
Static pressure
5X rated range or 7MPa which ever is less
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)
OperatingTemperature
-20℃~80℃
Power supply
12~30VDC
Output signal
4~20mA
Pressure port
M20×1.5 G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Protection
IP65
Insulation resistance
100MΩ 100VDC

Features Smart Digital Differential Pressure Transmitter

1.Compatible with 316LSS,noncorrosive gases &liquids

2.Wind pressure & velocity of flow in industry process
3.Measuring pressure of pipeline &firepot
4.Petroleum industry, chemical industry
5.Meteorological monitoring
