Description of Intelligent differential pressure sensor differential pressure level sensor
Intelligent differential pressure sensor differential pressure level transmitter will cause changing of capacitance value, analog signal convert to digital signal via AD and then being transfered to microprocessor, processed by microprocessor then convertted to 4～20mA analog electricity signal via DA.
Parameter of Intelligent differential pressure sensor differential pressure level sensor
| Output | two –wire 4-20mADC |
| | two –wire 4-20mA with HART |
| Power supply | supply voltage 24VDC |
| Limit load | Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
| Display | 4 digital display,5 digit LCD display, pointer type. |
| Explosion-proof | ExiaIICT5;explosion suppression type |
| Zero offset | Can positive transfer or negative transfer, but can not overstep the utmost value |
| Temperature | ambient temperature -40-85℃(When choose LCD : -20-70℃) |
| Medium temperature | -40～104℃ |
| Static pressure and single side overpressure | 3.45KPa(absolute pressure)～31.2MPa(gauge pressure) |
| Relative humidity | 5～98%RH |
| Run-up time | less than 5 sec. |
| Capability change | Less than 0.16cm3 |
| Damp adjust | 0.20～25 second |
| Malfunction alarming | If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA |
| Configuration protection | To avoid the datas are modified random, can utilize software or protect switch lock the record data |
Feature of Intelligent differential pressure sensor differential pressure level sensor
It has reverse protection and current limiting protection circuit. When the positive and negative poles are reversed during installation, the transmitter will not be damaged. Solid-state structure, no moving parts, high reliability, long service life, easy installation, simple structure, economical and durable.
Application of Intelligent differential pressure sensor differential pressure level sensor
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.

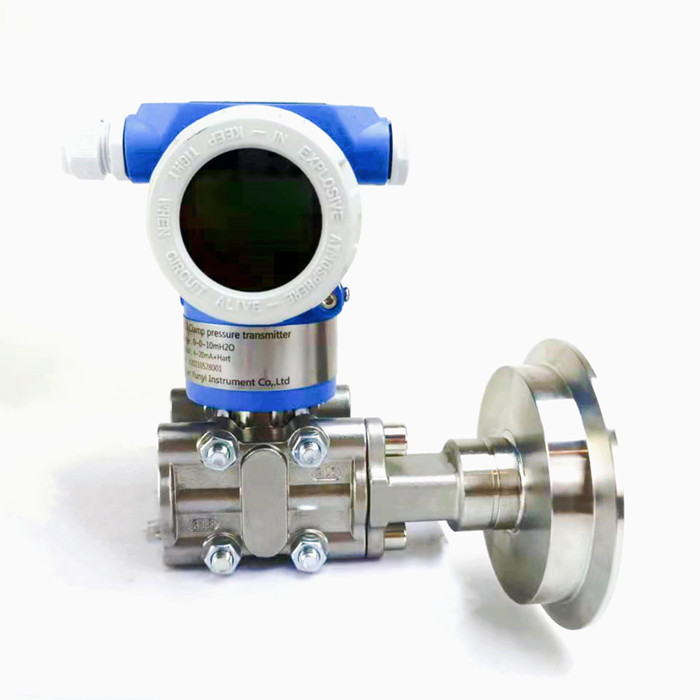

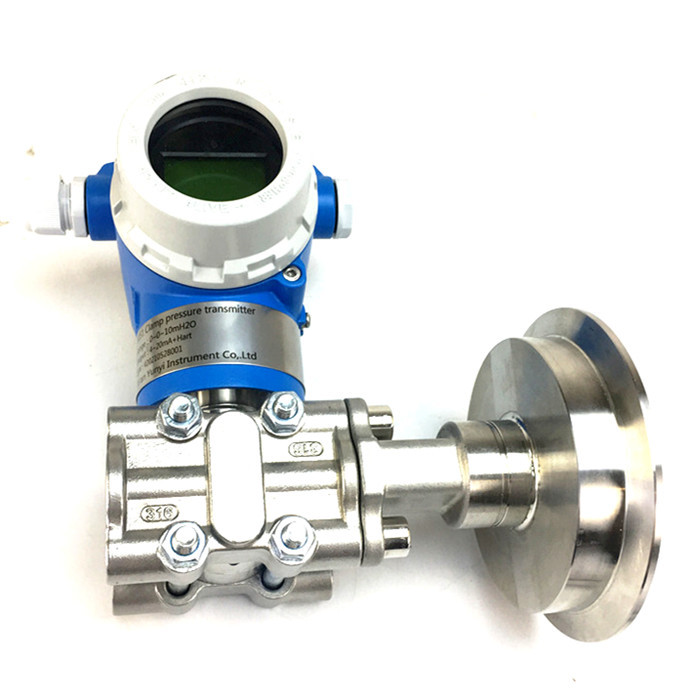

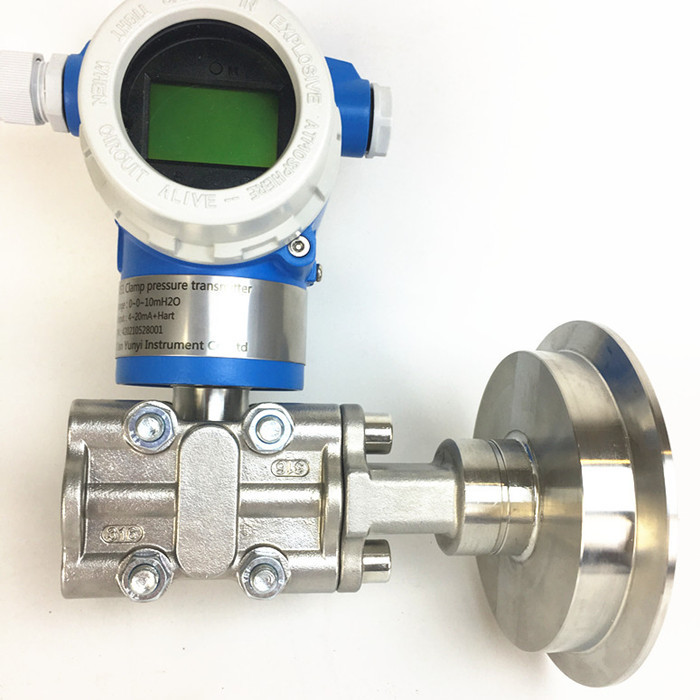

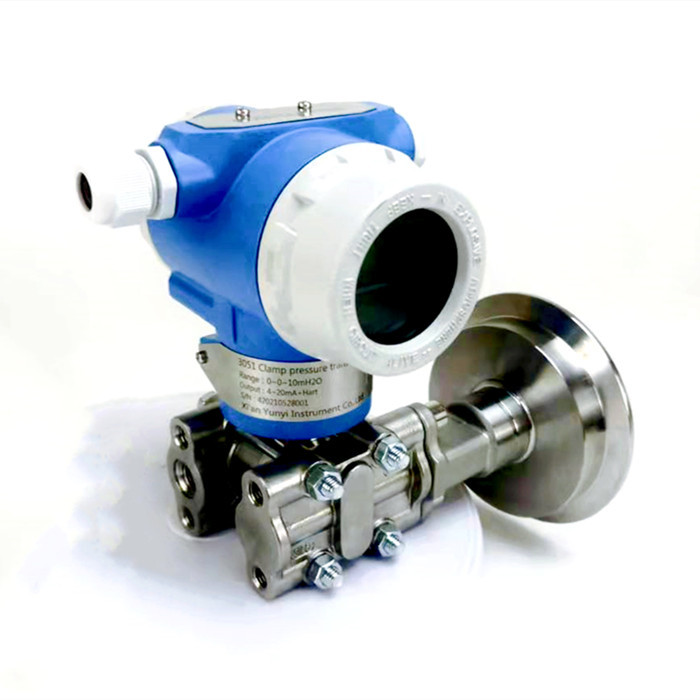

Detailed picture Intelligent differential pressure sensor differential pressure level sensor
