Intelligent differential pressure sensor differential pressure level sensor
The Intelligent differential pressure sensor and differential pressure level transmitter operate by detecting changes in capacitance values. Initially, the analog signal is converted into a digital signal through an Analog-to-Digital (AD) converter. This digital signal is then transferred to a microprocessor for processing. The microprocessor processes the signal and subsequently converts it into a 4-20mA analog electrical signal using a Digital-to-Analog (DA) converter.
The sensor utilizes a 16-bit single-chip core component, harnessing its robust capabilities and high-speed computing power to ensure the transmitter's quality. The design framework prioritizes reliability, stability, accuracy, and intelligence to cater to the increasing demands of industrial applications. To achieve this, the software integrates digital signal processing technology, offering exceptional anti-jamming capabilities, zero stability, zero automatic stability tracking (ZSC), and temperature automatic compensation (TSC) capabilities. These features collectively enhance the sensor's performance and reliability in industrial settings.
Parameter of Intelligent differential pressure sensor differential pressure level sensor
| Output | two –wire 4-20mADC |
| | two –wire 4-20mA with HART |
| Power supply | supply voltage 24VDC |
| Limit load | Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω |
| Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
| Display | 4 digital display,5 digit LCD display, pointer type. |
| Explosion-proof | ExiaIICT5;explosion suppression type |
| Zero offset | Can positive transfer or negative transfer, but can not overstep the utmost value |
| Temperature | ambient temperature -40-85℃(When choose LCD : -20-70℃) |
| Medium temperature | -40～104℃ |
| Static pressure and single side overpressure | 3.45KPa(absolute pressure)～31.2MPa(gauge pressure) |
| Relative humidity | 5～98%RH |
| Run-up time | less than 5 sec. |
| Capability change | Less than 0.16cm3 |
| Damp adjust | 0.20～25 second |
| Malfunction alarming | If occur malfunction, automatism diagnose function will output 3.9 or 21.0mA |
| Configuration protection | To avoid the datas are modified random, can utilize software or protect switch lock the record data |
Feature of Intelligent differential pressure sensor differential pressure level sensor
It has reverse protection and current limiting protection circuit. When the positive and negative poles are reversed during installation, the transmitter will not be damaged. Solid-state structure, no moving parts, high reliability, long service life, easy installation, simple structure, economical and durable.
Application of Intelligent differential pressure sensor differential pressure level sensor
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.

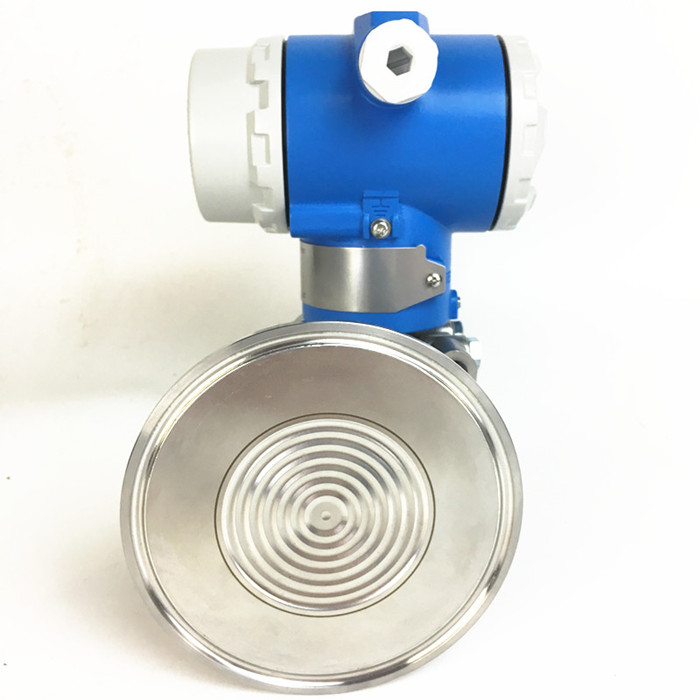

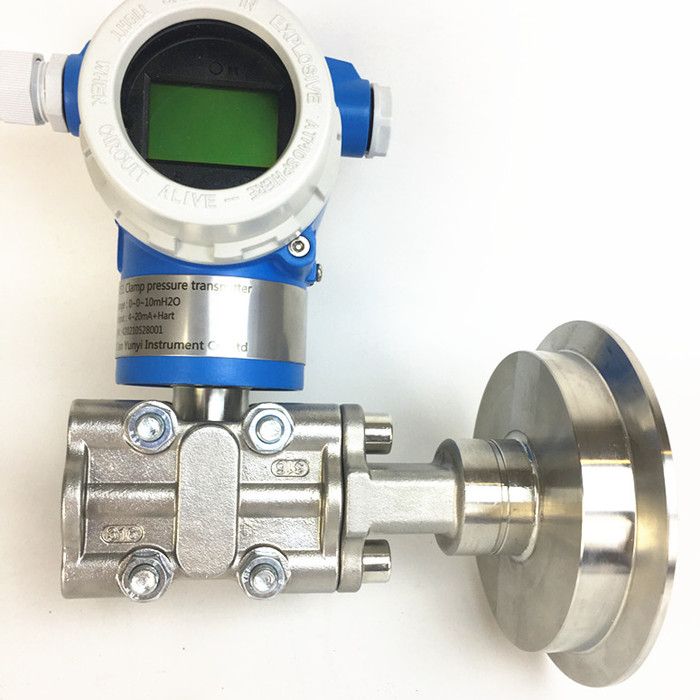

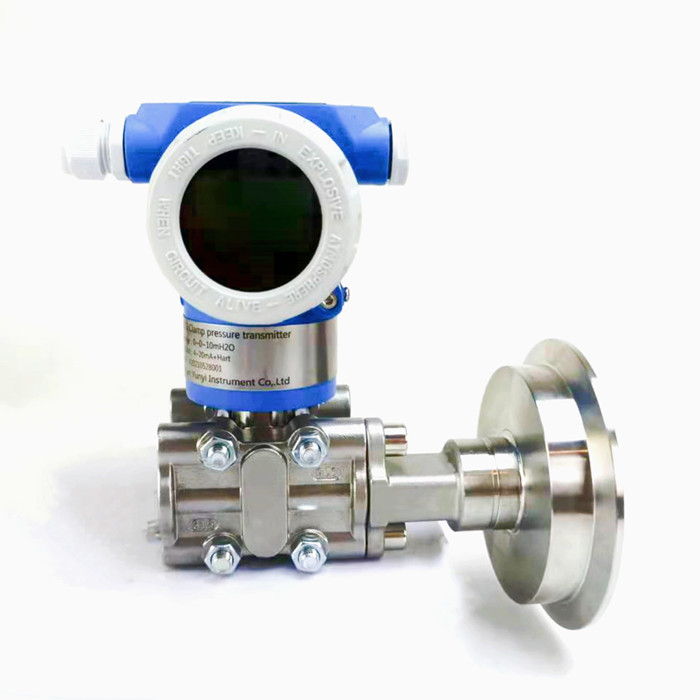

Detailed picture Intelligent differential pressure sensor differential pressure level sensor
